Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Fill brake fluid reservoir -1- with brake fluid.

1.1 Unscrew threaded cover -2- on brake fluid reservoir -1- .
1.2 Fill brake fluid into the brake fluid reservoir -1- until the brake fluid level in the brake fluid reservoir -1- is between MIN -arrows A- and MAX -arrows B- .
1.3 Tighten threaded cover -2- on brake fluid reservoir -1- .

1.4 Clean off any escaping brake fluid immediately using suitable cleaning aids.

Wash affected components again with water and dry them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

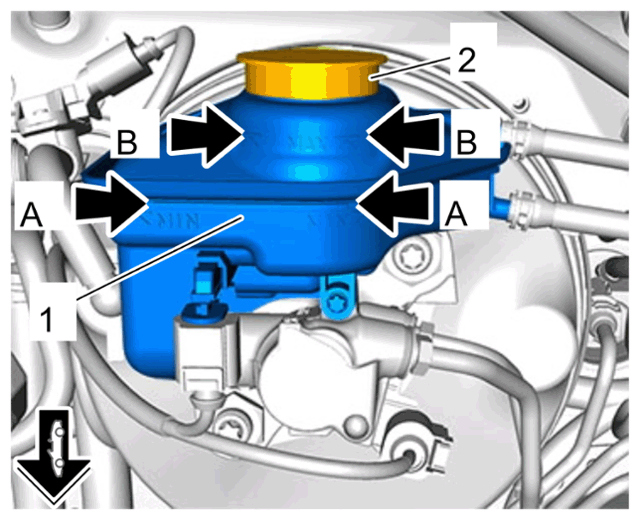

Filling brake fluid reservoir

Bleed the brake system.
> 470107 BLEEDING THE BRAKE SYSTEM
Only for vehicles with manual transmission: Bleed the clutch system.
> 300107 BLEEDING THE CLUTCH SYSTEM
Only for vehicles with manual transmission: Install alarm siren.
> 966519 REMOVING AND INSTALLING ALARM SIREN
Install cover.
> 852219 REMOVING AND INSTALLING COVER
