Component Information

WARNING: This page is about a different variant/trim than selected.

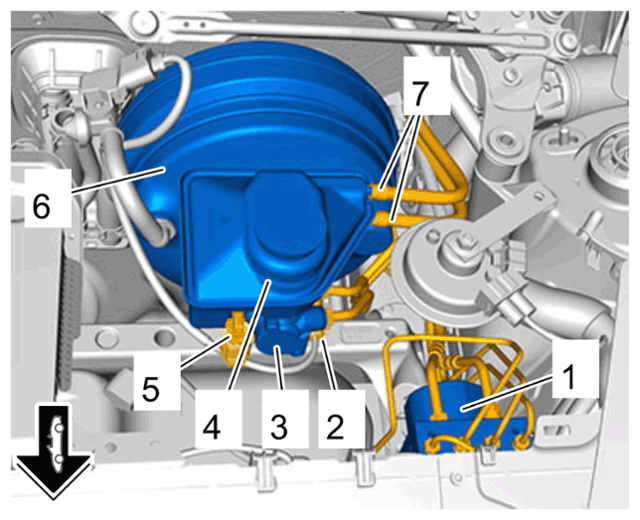

Fig 1: Brake Components Location
G14947206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake components

  1. Hydraulic unit
  2. Electric plug connection for brake light switch
  3. Brake master cylinder
  4. Brake fluid reservoir
  5. Electric plug connection for brake fluid level indicator
  6. Brake booster
  7. Only for manual transmission:  Brake fluid hoses to the clutch cylinder
