Removing Speed Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Release electric plug connection 1  from the speed sensor 2  and pull it off.

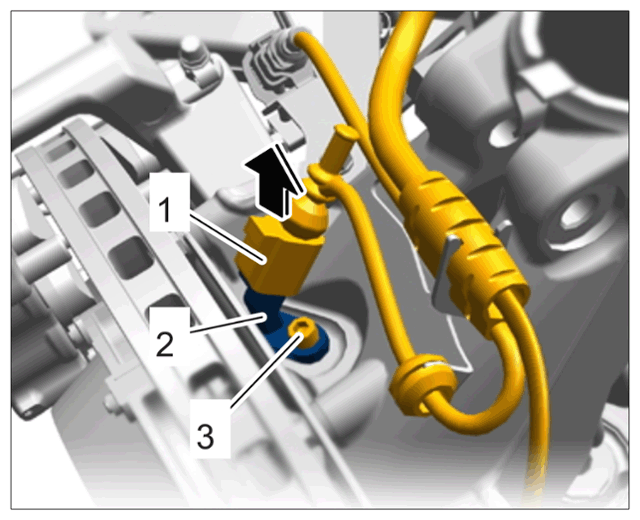

    G14947202Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for speed sensor (shown as an example)

  2. Loosen fastening screw 3  for the speed sensor 2  .
  3. Pull the speed sensor 2  out of the wheel carrier -arrow-  .
