Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Aluminium tie rod to axial joint | Lock nut. M14x 1.5 | Tightening torque | 50 Nm (37 ftlb.) | ||
|

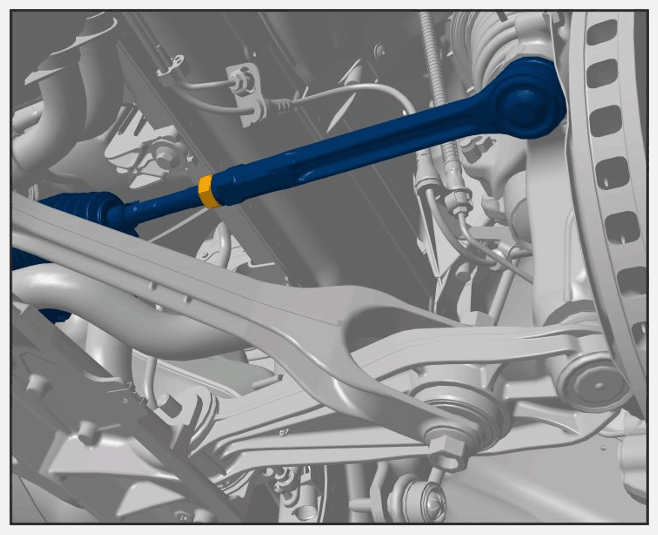

Aluminium tie rod to axial joint |
|||||
| Tie-rod end to wheel bearing housing (on steering arm) | Hexagon nut, M12x 1.5 | Tightening torque | 85 Nm (63 ftlb.) | ||
|

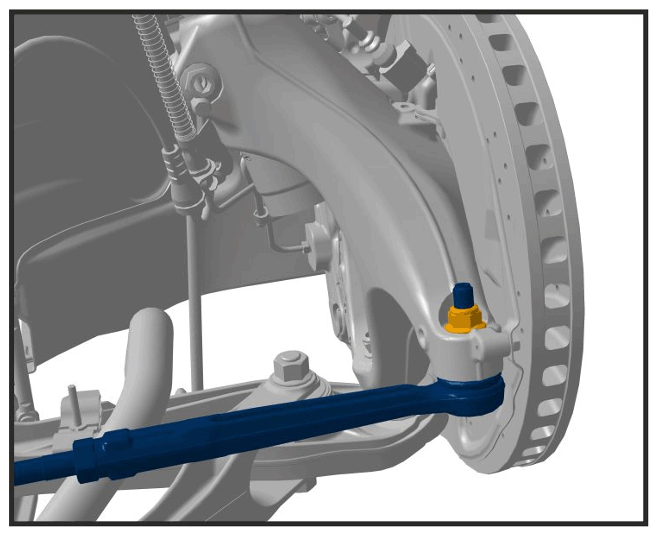

Tie-rod ball on wheel bearing housing |
|||||
