WM, 487919 Removing And Installing Tie Rod: Information

WARNING: This page is about a different variant/trim than selected.

NOTIFICATION

Water can leak in if sealing elements are damaged.

Component can become damaged or may not function.
→ Replace damaged sealing elements.

→ Check that sealing elements are fitted correctly.

The tie rod(s) -3- can be removed and installed when the power-steering gear is installed.

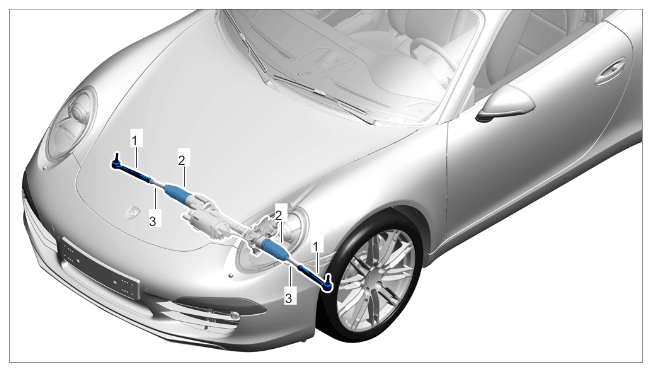

Fig 1: Power-Steering Gear With Tie Rods Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power-steering gear with tie rods
