Installing Bellows For Steering-Gear Housing

WARNING: This page is about a different variant/trim than selected.

Fit bellows on tie rod and steering-gear housing. Check that the bellows is seated perfectly.

Secure the bellows with a new clamp and spring band clamp.

1.1 Position the bellows on the tie rod.

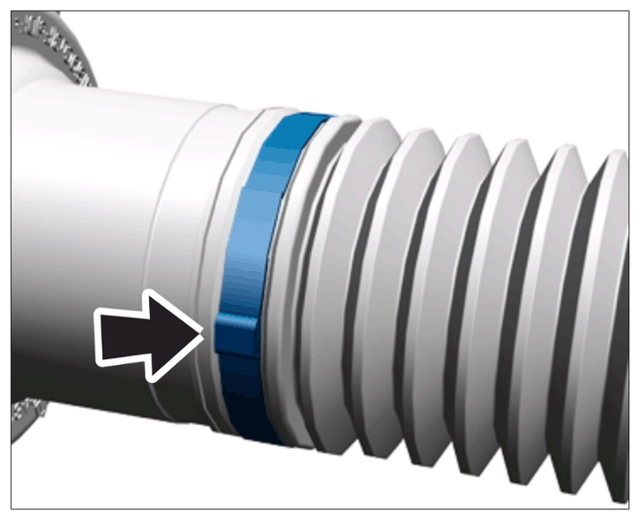

Fit spring band clamp -arrow- using > VAS 6889 - Spring Band Clamp Pliers .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring band clamp

1.2 Slide the bellows as far as it will go onto the steering-gear housing.

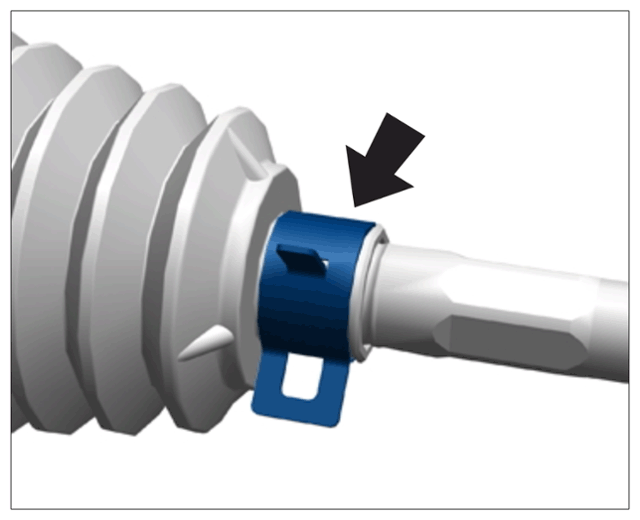

Position a new clamp -arrow- in such a way that you can reach it easily in order to tighten it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamp

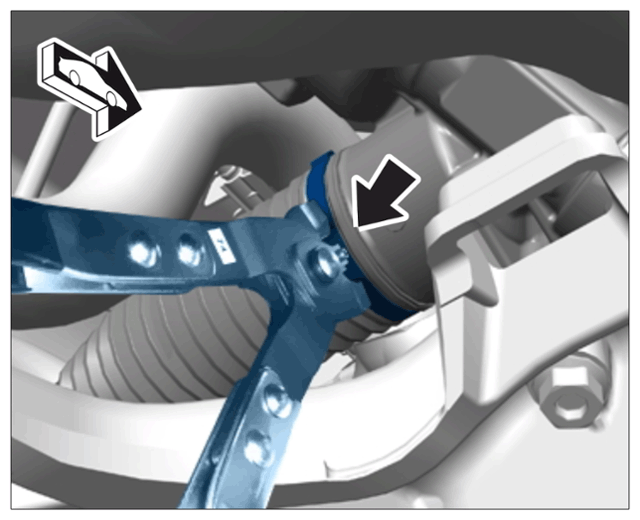

1.3 > V.A.G 1275A - Hose clip pliers or > VAS 6199A - Clamping pliers must be fitted on the clamp lug -arrow- and pretensioned slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting clamp

Check the position of the clamp again, adjust it if necessary, and then tighten it (press the clamp lug together).
