Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Bottom joint to steering column (universal joint) Fit bolt (M8x 30), always use new bolt following removal Initial tightening 20 Nm (15 ftlb.)

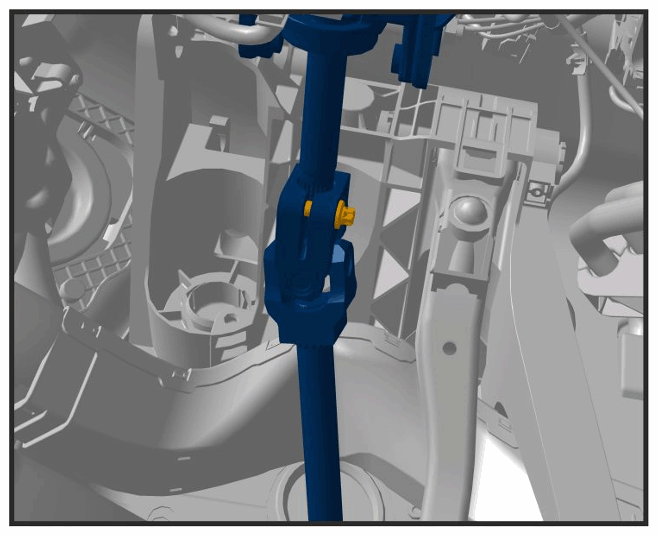

G14947498Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom joint on steering column
Bottom joint to steering column (universal joint) Fit bolt
(M8x 30), always use new bolt following removal		 Final tightening + 90>
G14947499Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom joint on steering column
Bottom joint to steering gear (universal joint) Fit bolt (M8 x 30), always use new bolt following removal Initial tightening 20 Nm (15 ftlb.)

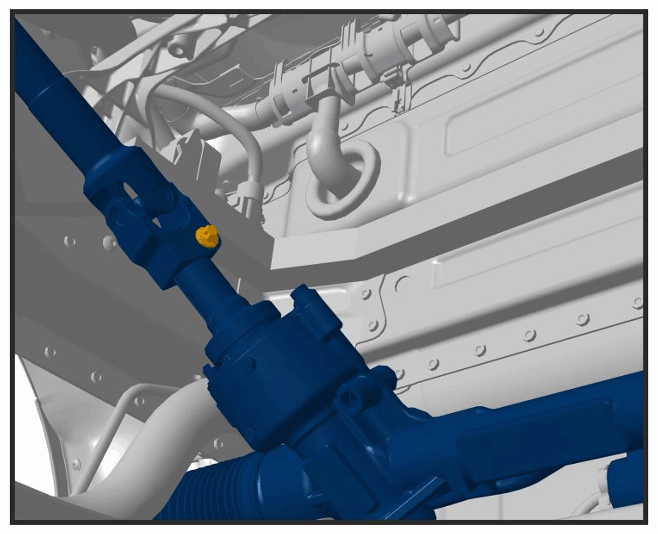

G14947502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom joint on steering gear
Bottom joint to steering gear (universal joint) Fit bolt (M8 x 30), always use new bolt following removal Final tightening + 90>
G14947503Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom joint on steering gear
