Removing Bottom Joint

Information

After removing the steering column, the bottom joint is in two parts:

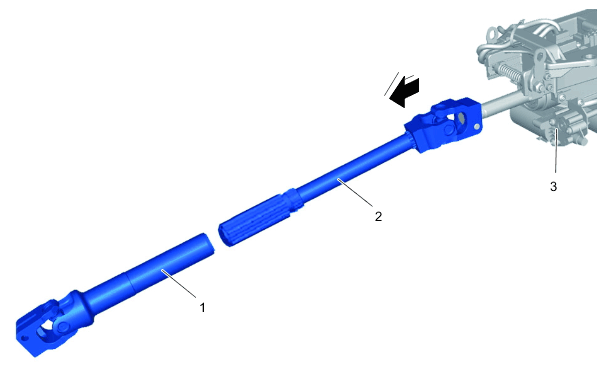

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of steering column

1. Bottom joint (lower section)
2. Bottom joint (upper section)
3. Steering column

• The upper section -2- is fitted on the universal joint of the steering column -3-.
• The lower section -1- is fitted on the universal joint of the power-steering gear.

1. Remove bottom joint (upper section).

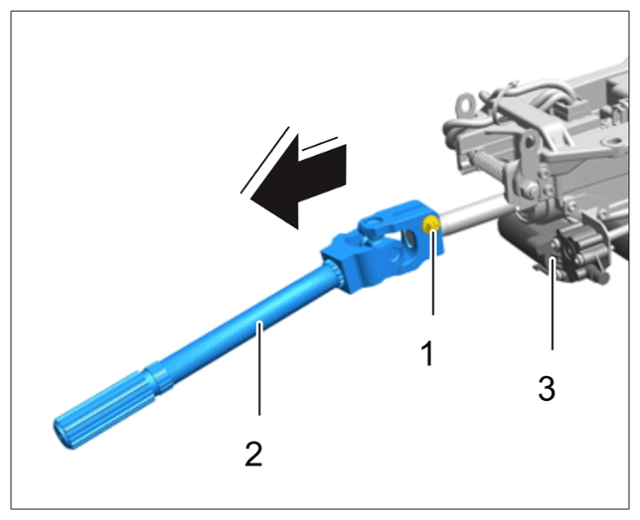

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening bottom joint from steering column

   1. 1.1  Loosen clamping screw -1-  from the bottom joint -2-  on the steering column -3-  .
   2. 1.2  Slide the bottom joint -2-  down off the steering column -2-  (-arrow-  ).
2. Remove bottom joint (lower section).
   1. 2.1  Remove front left wheel

      > 440519 Removing and installing wheel

   2. 2.2  Unclip and remove control arm spoiler (air guide for brake cooling) at the back of the diagonal arm.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Control arm spoiler

   3. 2.3  Disconnect universal joint from the steering gear,

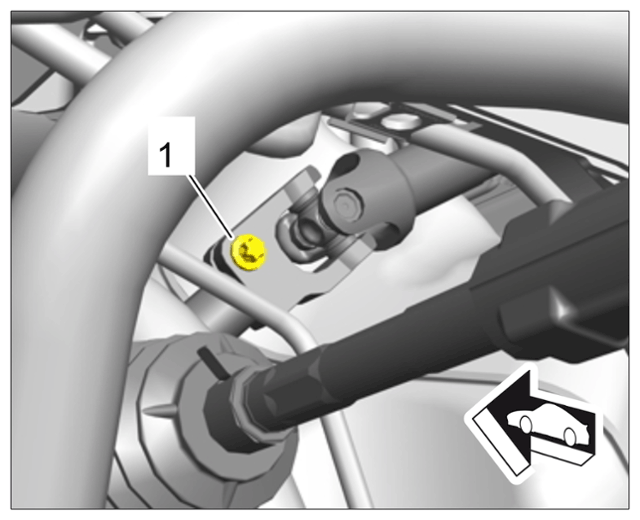

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Universal joint for steering column

   4. 2.4  Carefully remove bottom joint (lower section) from the wheel housing.
