Installing Bottom Joint

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

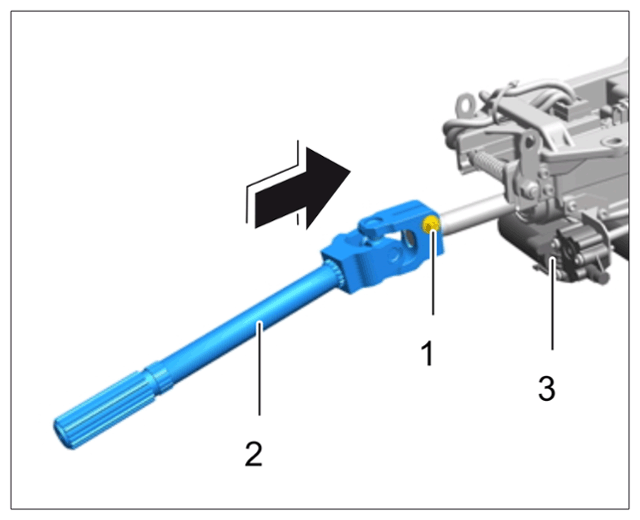

Securing intermediate steering shaft

1. 1.1  Push the bottom joint -2-  as far as it will go onto the steering column -3-  (-arrow-  ).
2. 1.2  Tighten clamping screw -1-  > Initial tightening 20 Nm (15 ftlb.)  > Final tightening + 90 >

1. 2.1  Position bottom joint (lower section) in installation position.
2. 2.2  Fit universal joint on the steering gear. > Initial tightening 20 Nm (15 ftlb.)  > Final tightening + 90

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

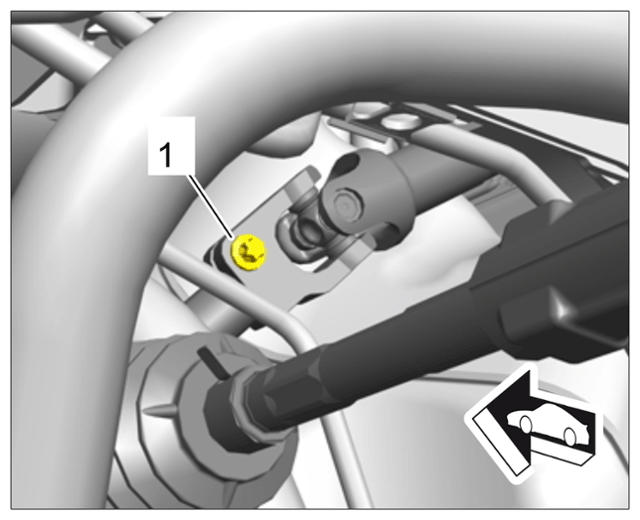

   Universal joint for steering column

3. 2.3  Fit control arm spoiler (air guide for brake cooling) at the back of the diagonal arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

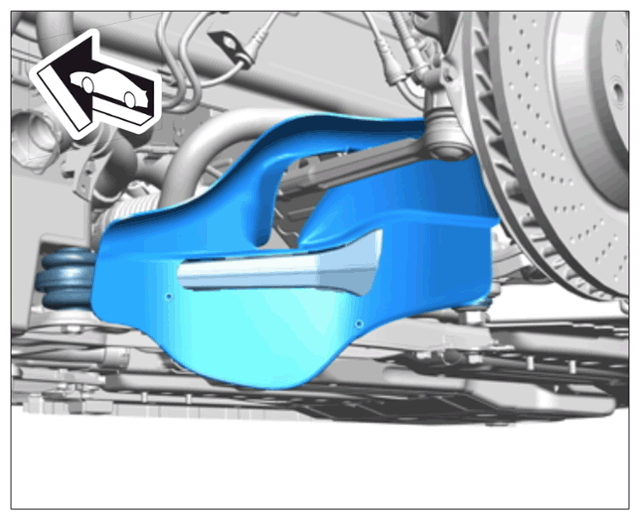

   Control arm spoiler

4. 2.4  Fit front left wheel

   > 440519 Removing and installing wheel
