Replacing Steering Column Centre

WARNING: This page is about a different variant/trim than selected.

Remove ELV (steering lock) control unit.
> WM, 480819 REMOVING AND INSTALLING STEERING LOCK

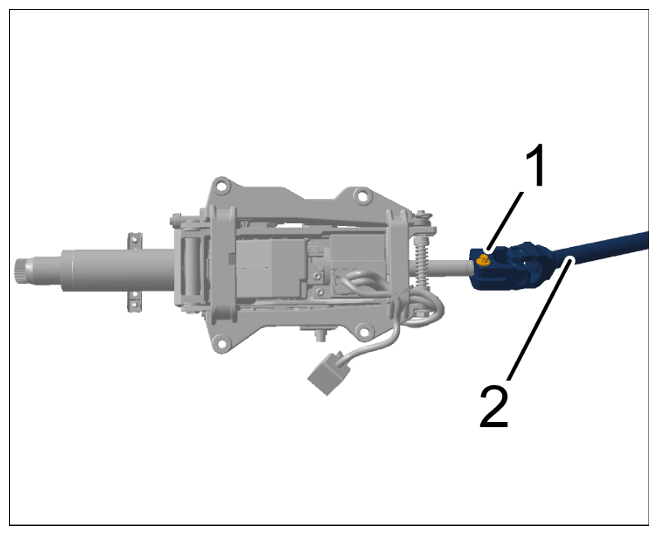

Unscrew screw -1- and remove universal joint -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing universal joint

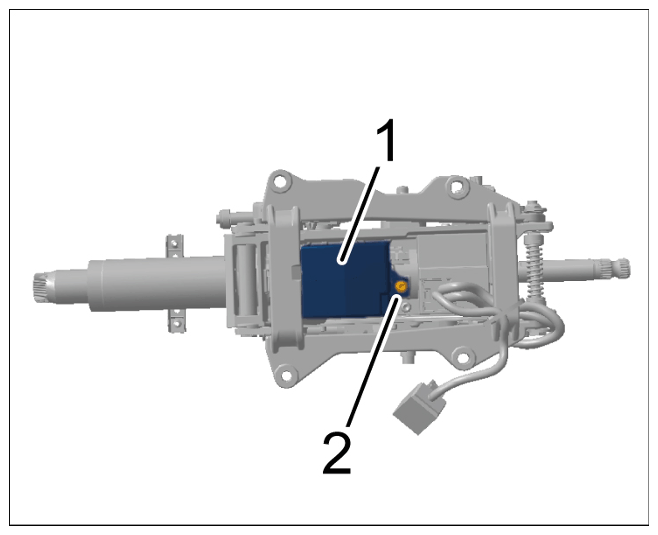

Unscrew screw -2- and remove height adjustment control unit -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing height adjustment control unit
Installation is performed in reverse order. Pay particular attention to the following:
Replace screw securing universal joint to steering column.

Tightening torque for screw securing universal joint to steering column: > Initial tightening 20 Nm (15 ftlb.) > Final tightening + 90 >
