Installing Steering Column (Centre]

WARNING: This page is about a different variant/trim than selected.

Insert steering column center -1- into the vehicle through the passenger compartment.

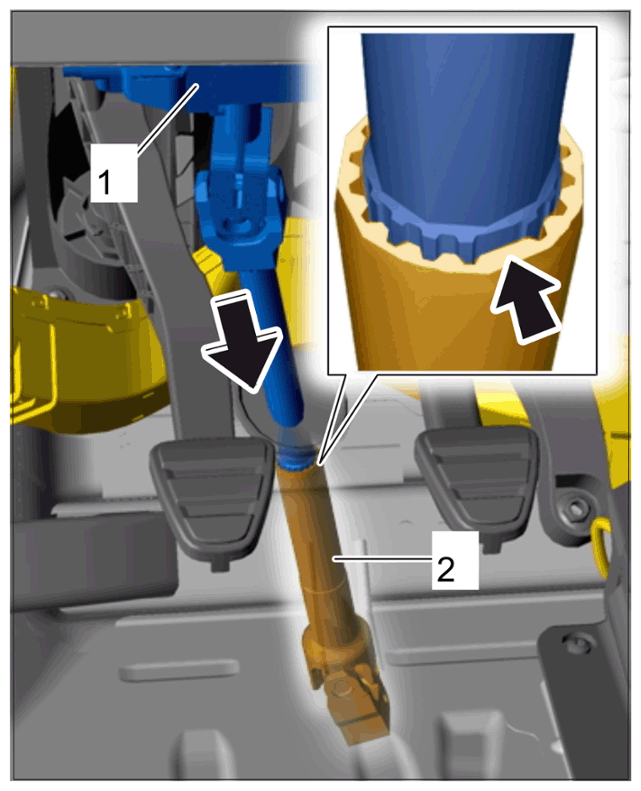

Slide the steering column center -1- onto the intermediate steering shaft -2- from above as far as it will go -arrow- ¹⁾ .
¹⁾ The splines ensure that the intermediate steering shaft can only be fitted at a certain position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing steering column (center)

Plug in combination connector and electric plug connection for steering column.

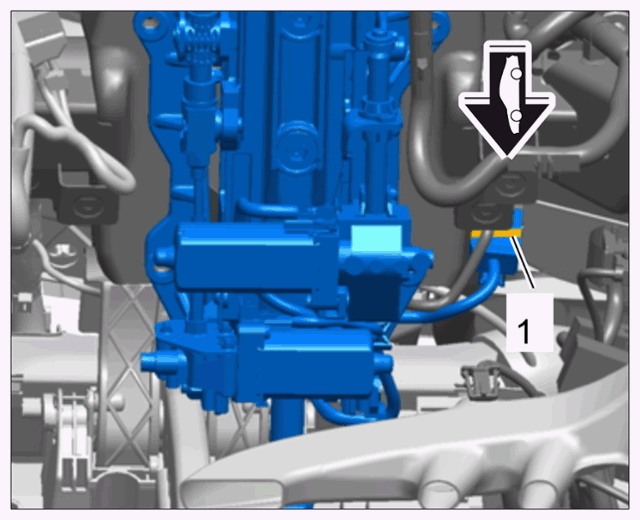

3.1 Plug in combination connector -1- at the mounting bracket holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting combination connector

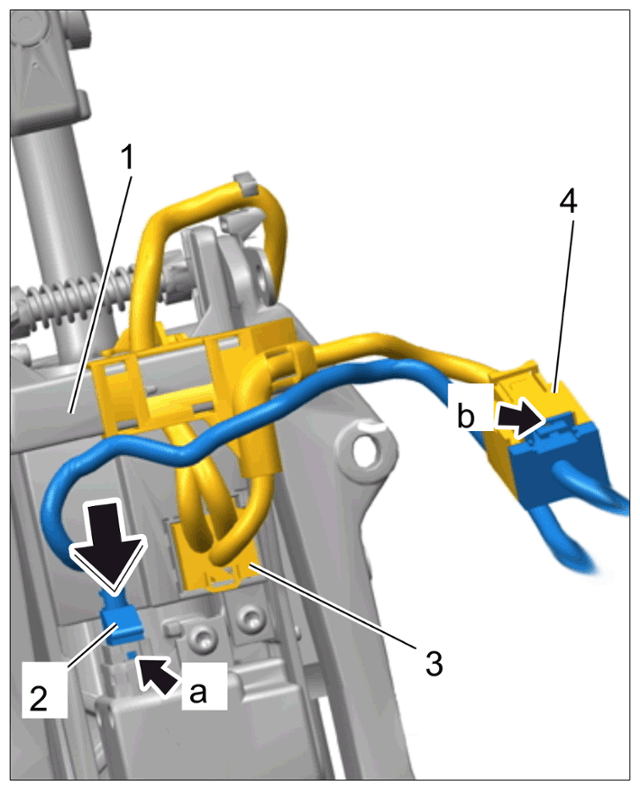

3.2 Plug in electric plug connection -2- on the steering column until it engages securely.

3.3 Plug in combination connector -4- and lock it -arrow b- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting electric plug connections

Information

Observe tightening sequence and tightening torques for steering column on mounting bracket.
Calibrate the steering-angle sensor using > 9818-PIWIS Tester II .
> 456005 INITIALIZING AND CALIBRATING PSM STEERING-ANGLE SENSOR
Replace screws and nuts.
Visually inspect all parts.

Secure the steering column -1- .

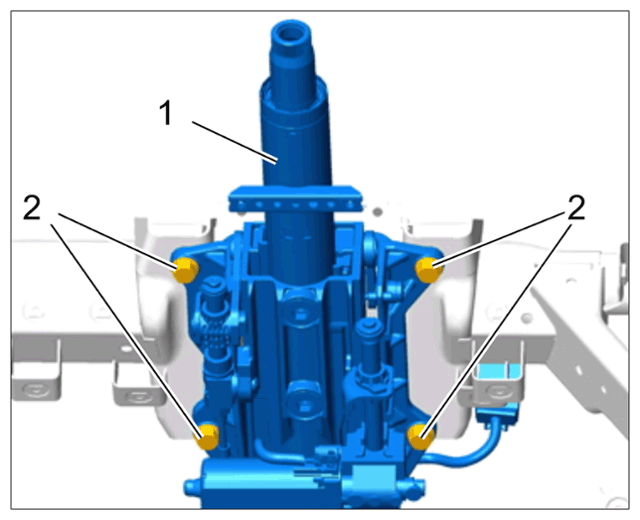

4.2 Screw in and tighten nuts -2- for the steering column -1- from below. > Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing on nuts

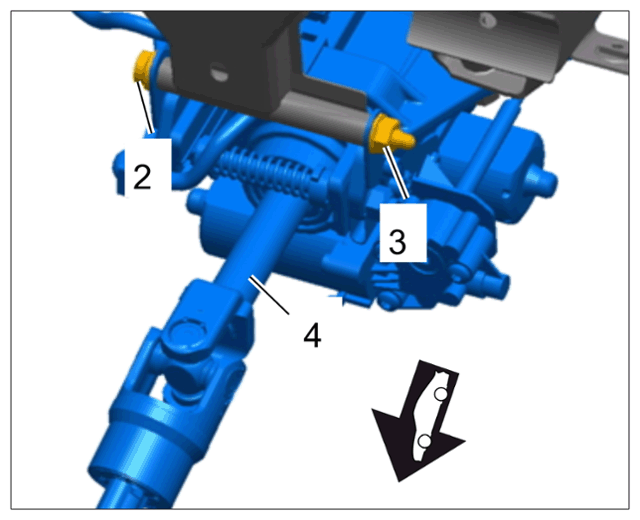

4.3 Screw in screw -2- on the steering column -4- and screw on nut -3- Counter at the nut and tighten screw. > Tightening torque 12 Nm (9 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in screw

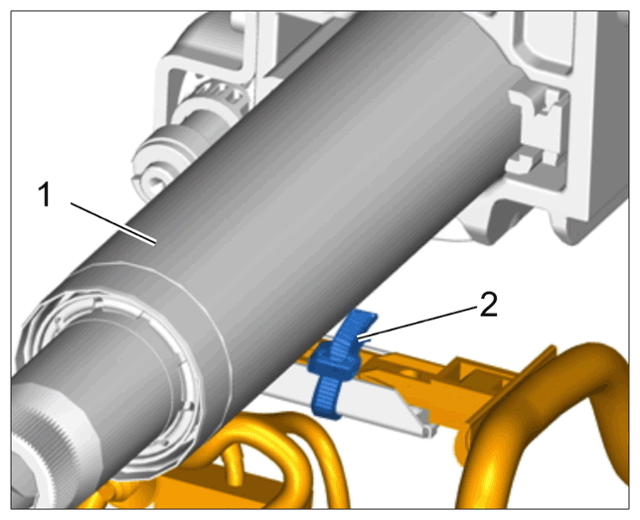

Fit the tie-wrap -2- at the steering column -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting tie-wrap
