Disassembling Steering Wheel

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew fastening screws -1-  on rear cover -2-  .
    G14947438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear cover

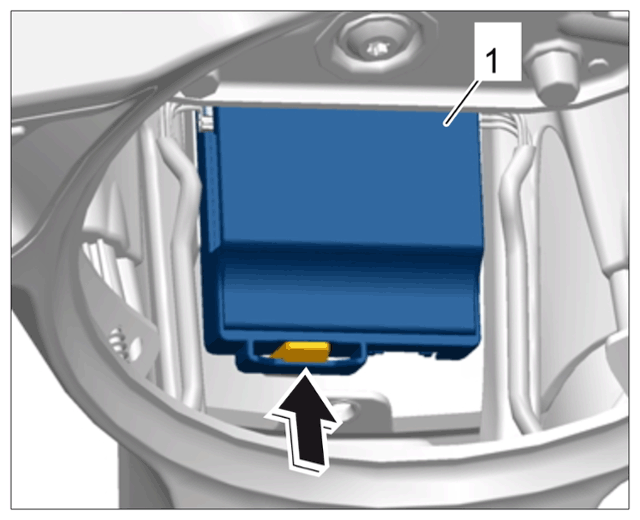

  2. Release control unit -1-  at position -arrow-  and pull it forward slightly.
    G14947439Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit mounting

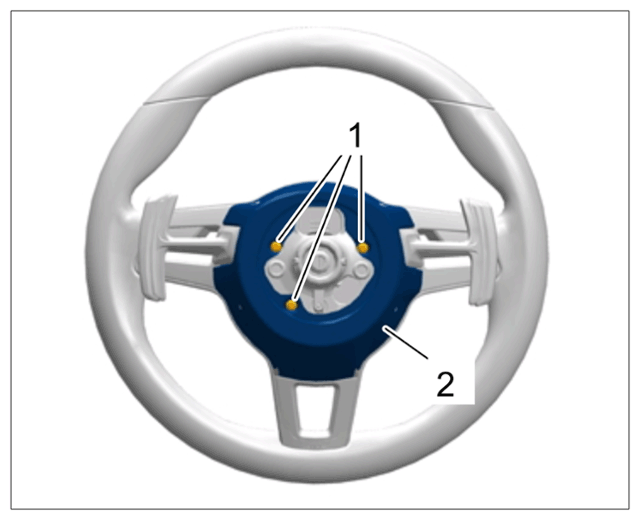

  3. Remove rear cover -2-  .
    G14947440Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear cover

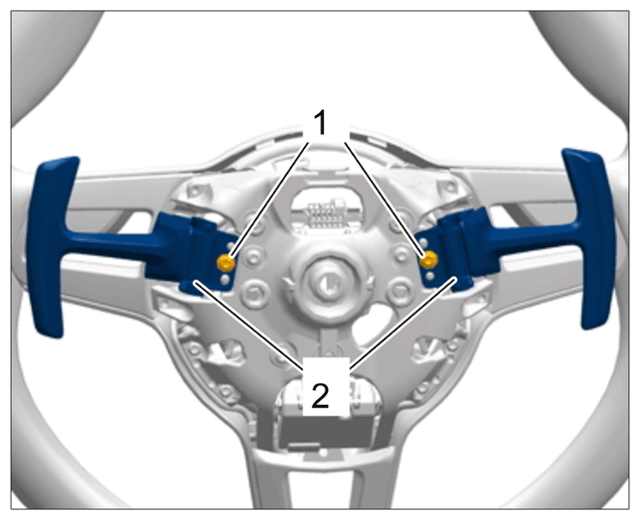

  4. Unscrew fastening screws -1-  for the paddles -2-  .
    G14947441Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for paddles

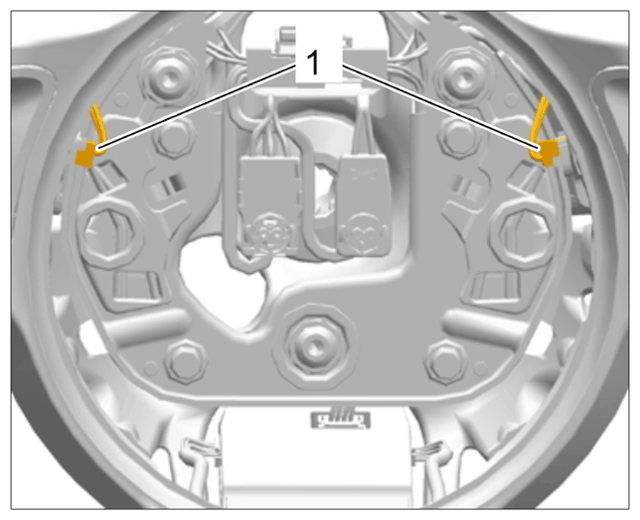

  5. Release and disconnect electric plug connection -1-  for the paddles.
    G14947442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector for paddles

  6. Lift paddles -2-  up and off.
    G14947443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for paddles

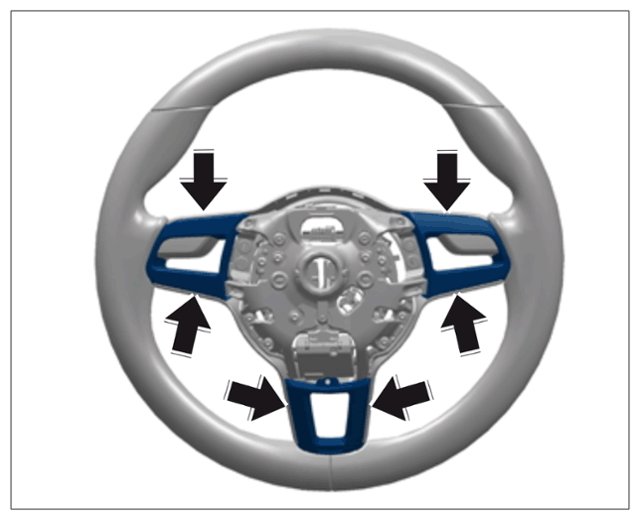

  7. Unclip rear trims at positions -arrows-  using a suitable thin tool [e.g. feeler gauge].
    G14947444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear trims

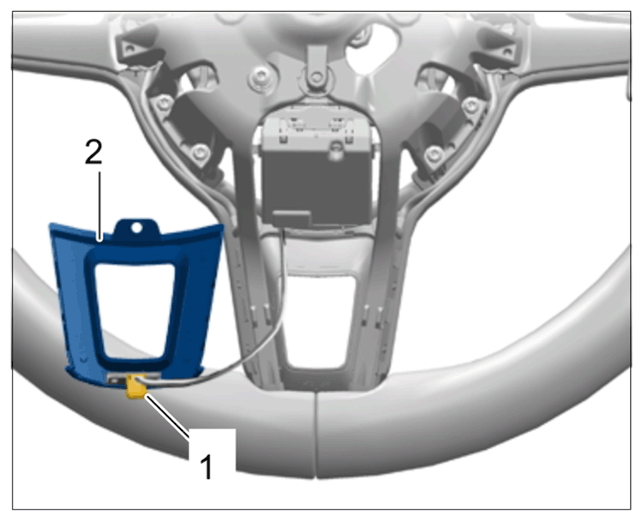

  8. Only for heated steering wheel:  Release electric plug connection -1-  from the rear trim at the 6 o'clock position -2-  and disconnect it.
    G14947445Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector for heated steering wheel switch

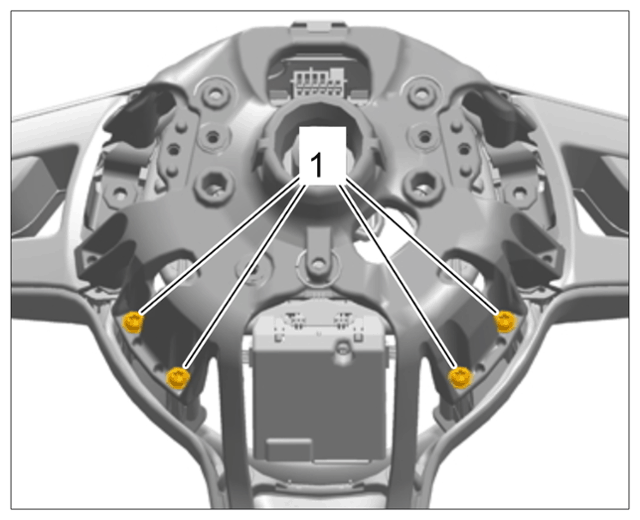

  9. Unscrew fastening screws -1-  on the main trim.
    G14947446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for main cover

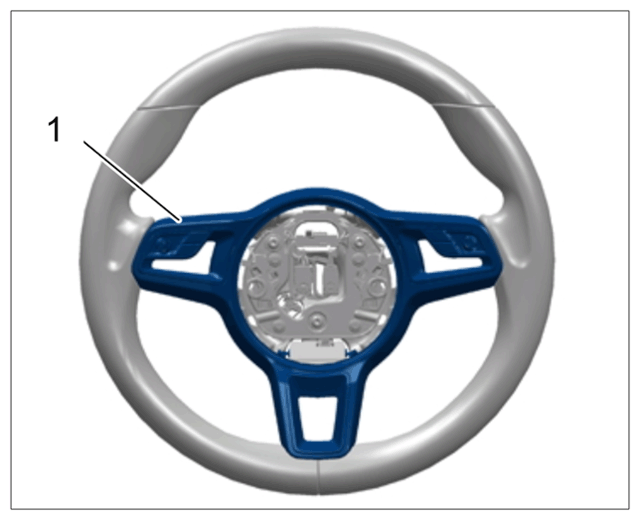

  10. Lift main trim -1 - straight up.
    G14947447Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main cover

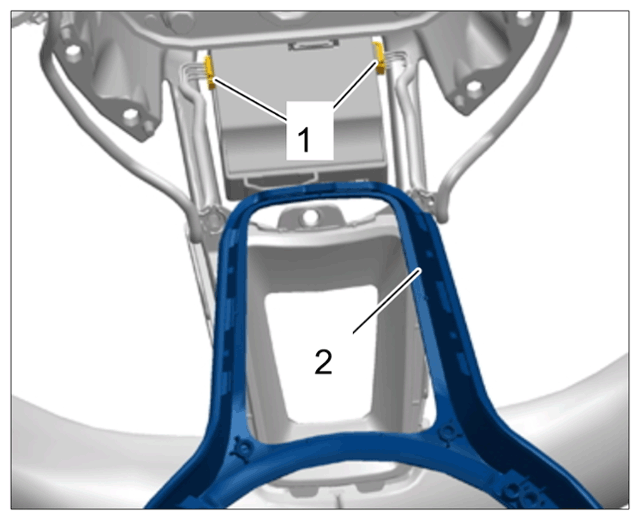

  11. Release and disconnect electric plug connections -1-  and remove main trim -2-  .
    G14947448Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector for multi-functional switch on control unit

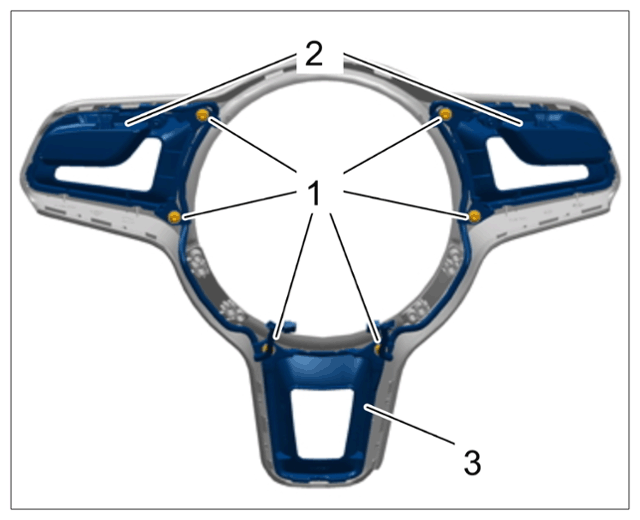

  12. Unscrew fastening screws -1-  for the multi-functional switch -2-  and front trim -3-  .
    G14947449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for multi-functional switch and front trim on main cover

  13. Remove multi-functional switch -2-  with cables and front trim -3-  .

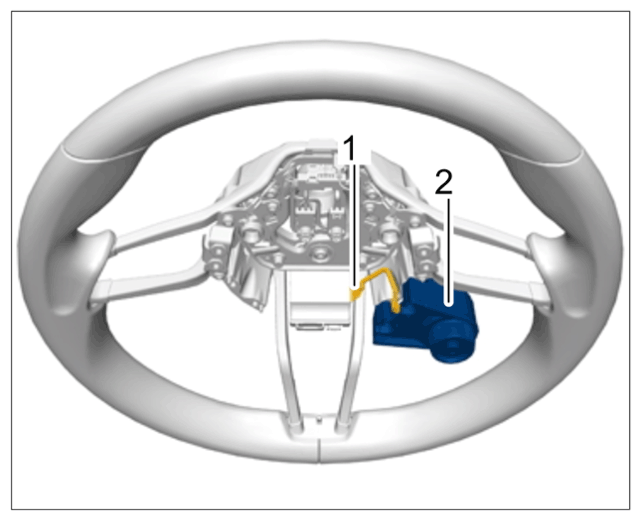

  14. If Mode switch is installed, disconnect electric plug connection -1-  and remove Mode switch -2-  from the steering wheel.
    G14947450Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mode switch

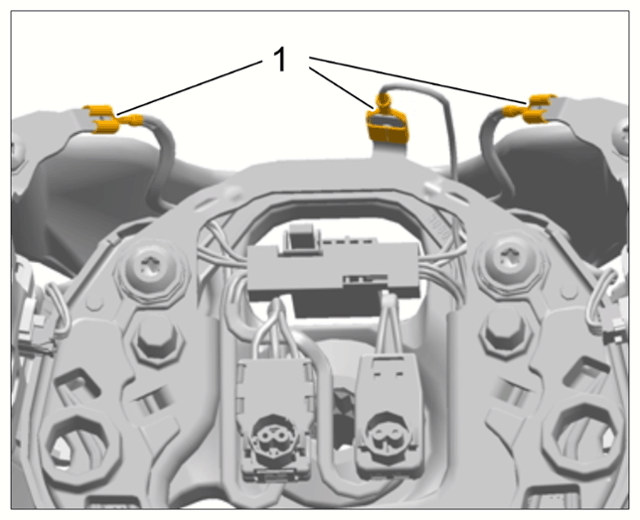

  15. Disconnect connector -1-  from connector lugs.
    G14947451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector contacts

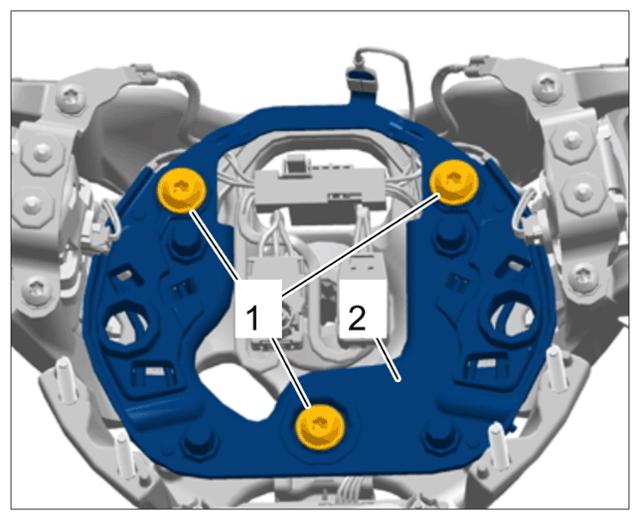

  16. Unscrew fastening screws -1-  on the contact bridge -2-  and remove contact bridge.
    G14947452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for contact bridge

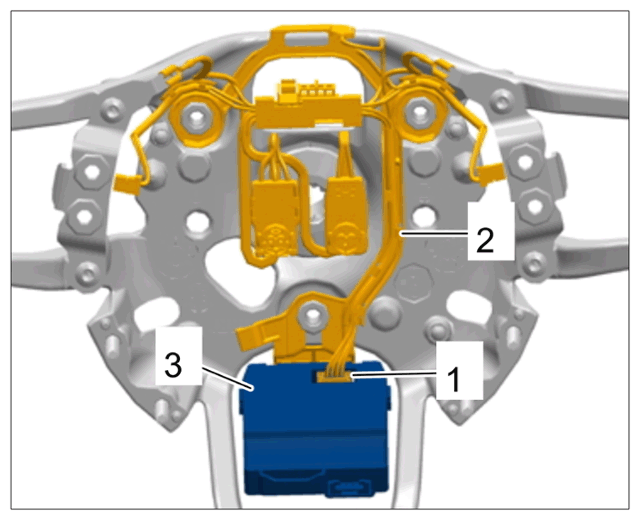

  17. Release electric plug connection -1-  for wire harness -2-  from the control unit -3-  and disconnect it. On vehicles with heated steering wheel, the electric plug connection for the heated steering wheel must also be loosened at the control unit.
    G14947453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector for wire harness on control unit

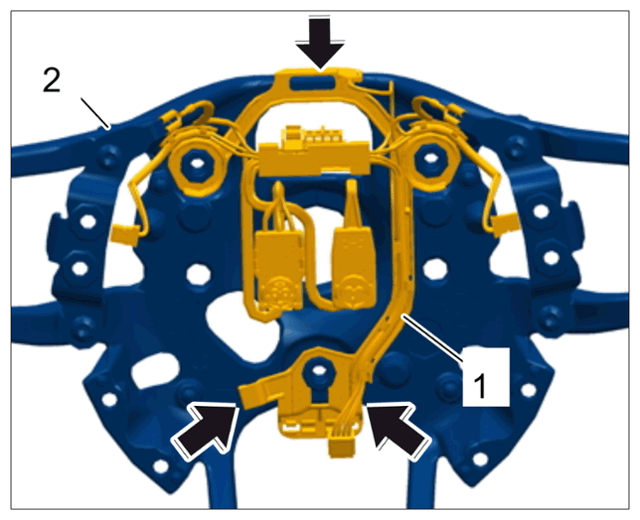

  18. Release wire harness -1-  at positions -arrows-  from the steering wheel skeleton -2-  and remove it.
    G14947454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for wire harness
