Removing Steering Wheel

WARNING: This page is about a different variant/trim than selected.
  1. Turn the wheels to straight-ahead position.
  2. Only for vehicles with heated steering wheel (l-no. 345)

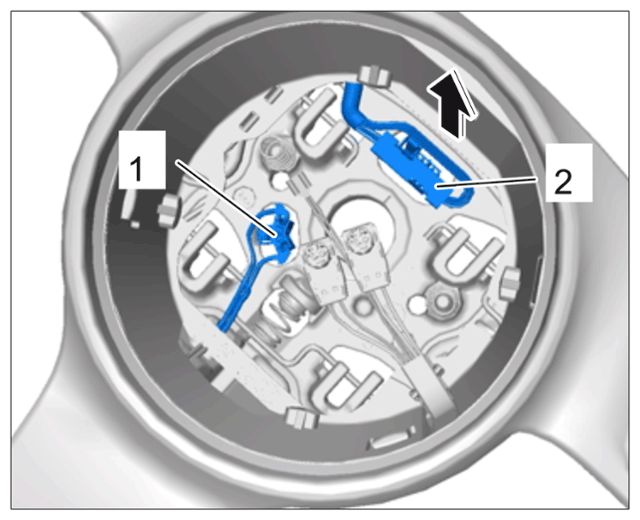

    Release and disconnect electric plug connection for steering wheel heating -1-  .

  3. Release plug connection for airbag wire harness -2-  and disconnect it -arrow-  .
    G14947424Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connections

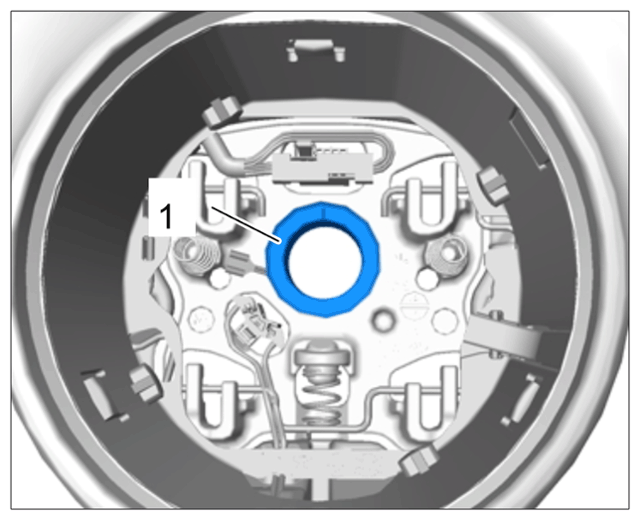

  4. Unscrew and remove screw -1-  .
    G14947425Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screw

    Information

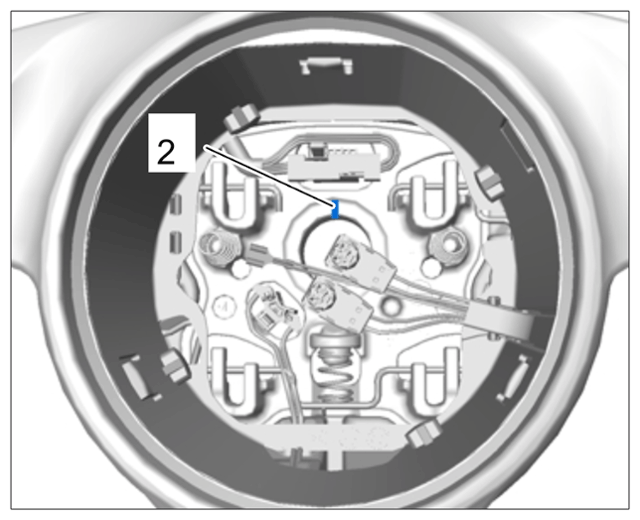

    Immediately after unscrewing the screw and before  removing the steering wheel, mark the position of the steering wheel between the steering wheel and steering column -2-  .

    This ensures that the steering wheel as well as the airbag spring will be fitted in the same position on the steering column again during re-installation.

    G14947426Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Marking position of steering wheel

  5. Remove steering wheel.
