Installing Steering Wheel
WARNING: This page is about a different variant/trim than selected.
Information
- Always observe specified tightening torques.
- Position wheels straight ahead and observe previously applied markings.
- Always replace internal serration screw.
- Installation is performed in reverse order.

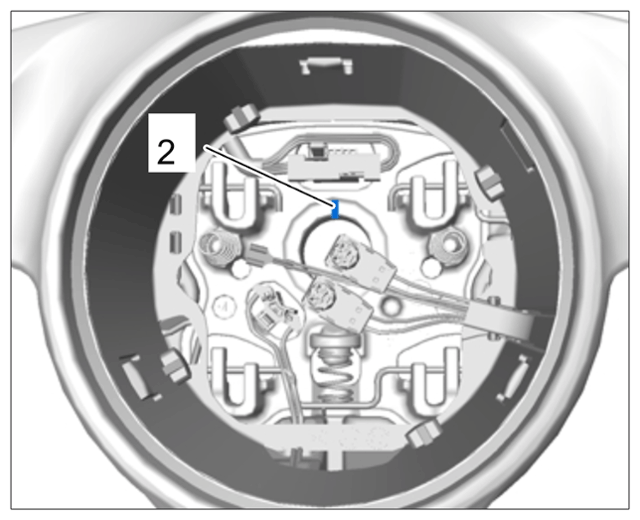

- When fitting the steering wheel, make sure that the marking -2-
between the steering wheel and steering column is aligned.
Fitting steering wheel
- Screw in and tighten screw securing steering wheel to steering shaft. > Initial tightening 30 Nm (22 ftlb.) > Final tightening + 90 >
