Installing Steering Lock

WARNING: This page is about a different variant/trim than selected.

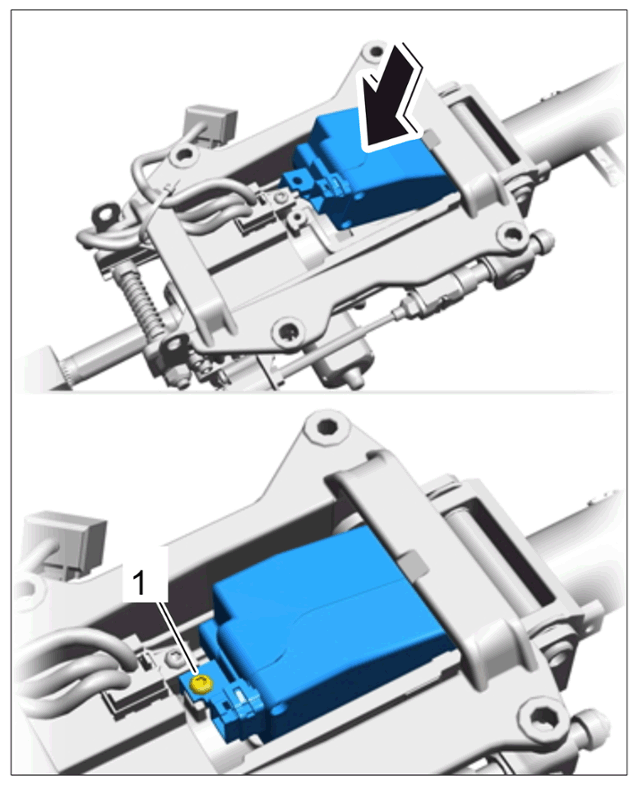

  1. Insert steering lock in the steering column -arrow-
    G14947418Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing steering lock

  2. Secure steering lock with the fastening screw > Tightening torque 1.7 Nm (1.4 ftlb.)
