Removing Front Anti-Roll Bar

Information

Secure steering wheel with wheels in straight-ahead position (engage steering column lock or clamp steering wheel in center position with steering-wheel holder).

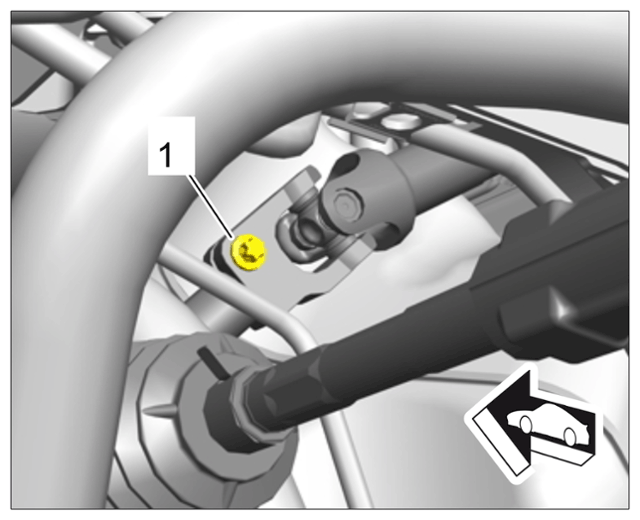

1. Disconnect universal joint from the steering gear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Universal joint for steering column

   1. 1.1  Unscrew fastening screw -1-  on universal joint.

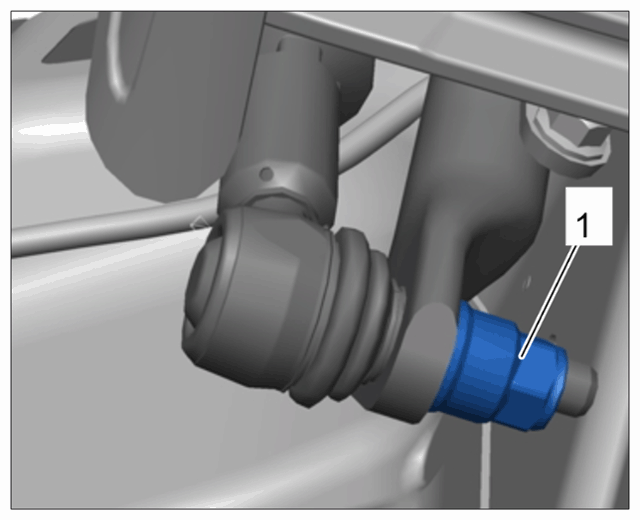

2. Loosen connecting links on the anti-roll bar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower connecting link mounting

   1. 2.1  Unscrew fastening nut To unscrew the fastening nut, counter with a > 9546 - screwdriver  at the ball-joint pin.
   2. 2.2  Remove ball-joint pin from the bore in the anti-roll bar.
3. Remove tie rods on both sides of the vehicle from the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

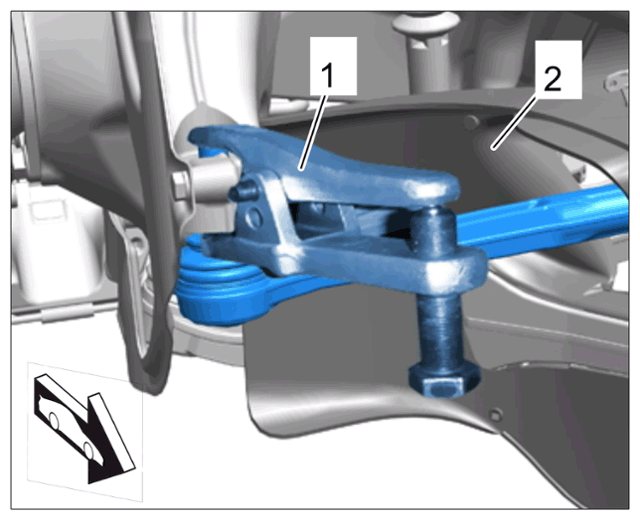

   Pressing off ball joint on tie rod

   1. 3.1  Unscrew lock nut and use a > 9546 - screwdriver  to counter at the ball-joint pin.
   2. 3.2  Coat the bellows and press-out tool with tire mounting paste to prevent damage to the bellows on the ball joint.
   3. 3.3  Press off tie-rod ball joint using > 9560- press-out tool-1-.

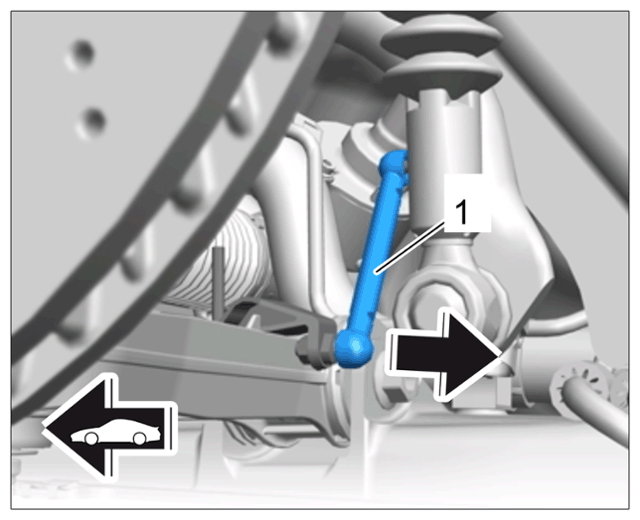

4. Loosen ball joint on the level sensor linkage -1-  from the lower trailing arm on both sides of the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ball joint on level sensor

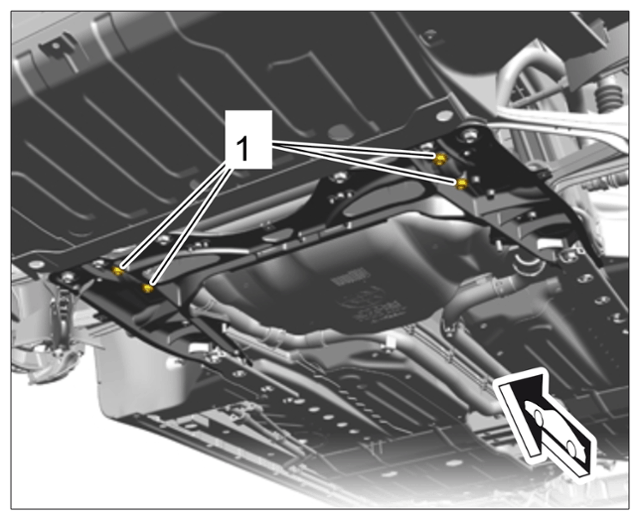

5. Loosen threaded connections for anti-roll bar clamps on the front-axle cross member -1-  at both sides.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Anti-roll bar on front-axle cross member (shown on the 991)

   WARNING: Warning about components falling down when the vehicle is raised

   • Risk of personal injury, particularly head injuries, if the front-axle cross member or steering gear falls down.

     → Never detach the front-axle cross member completely and also support it with a hydraulic lift.

     → Secure the loose steering gear to prevent it from falling down and always get another mechanic to help you to remove it.

   CAUTION: Hot components

   • Risk of burns

     → Let hot components cool down.

     → Wear personal protective gear.

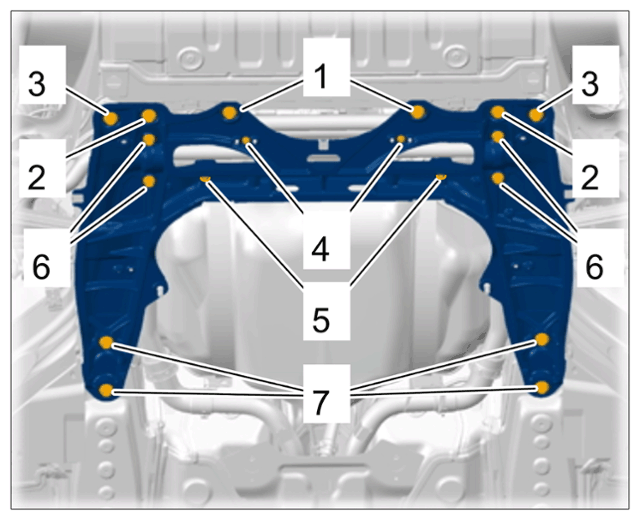

6. Lower the front-axle cross member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   1. 6.1  Support the front-axle cross member with a hydraulic lift [use a hard rubber base or wooden block),
   2. 6.2  Loosen fastening screws -7-  .
   3. 6.3  Unscrew fastening screws -4-  and loosen clips on the bracket for the coolant pipes,
   4. 6.4  Unscrew fastening nuts -2-  on the front-axle cross member and counter at the bolt using a Torx wrench.
   5. 6.5  Unscrew fastening screws -1 and 3-  .
   6. 6.6  Lower the front-axle cross member as far as required until the anti-roll bar is accessible.
7. Remove anti-roll bar.
