Preliminary Work

Information

• The spring strut and wheel bearing housing are removed together.

1. Remove engine compartment cover.

   > 852219 REMOVING AND INSTALLING COVER - article on "Removing"

2. If the wheel bearing, wheel hub or wheel bearing housing are replaced:  Remove the relevant hub cap using > 9229/1 - puller hook  and loosen the lock nut at the wheel side (from the central tension bolt) -1-  Operate the brake while doing this (2 mechanics required).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

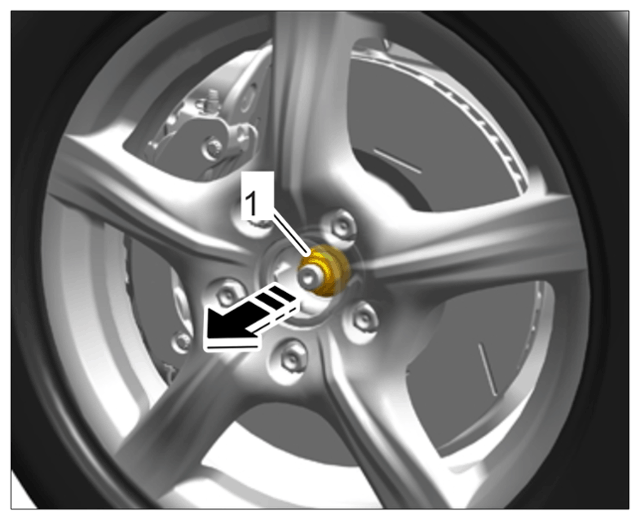

   Axle nut as an example

3. Raise the vehicle

   4X00IN LIFTING THE VEHICLE

4. Remove wheel

   > 440519 Removing and installing wheel

5. Remove brake disc

   > 465019 REMOVING AND INSTALLING FRONT BRAKE DISC
