Removing Diagonal Arm
WARNING: This page is about a different variant/trim than selected.

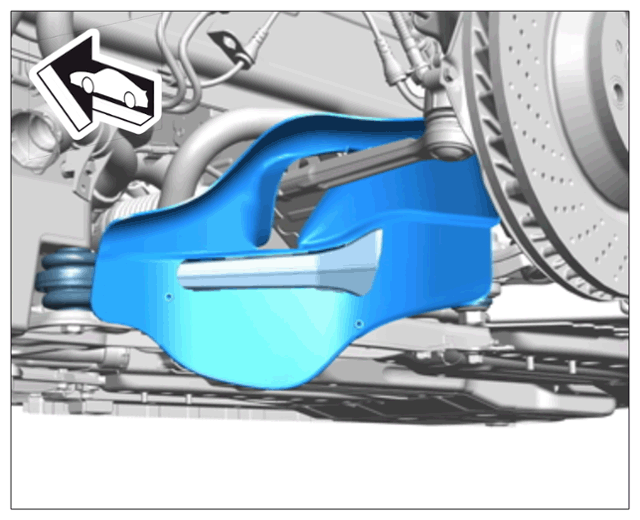

- Loosen control arm spoiler (air guide for brake Cooling) on the lower trailing arm and turn it up.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Control arm spoiler

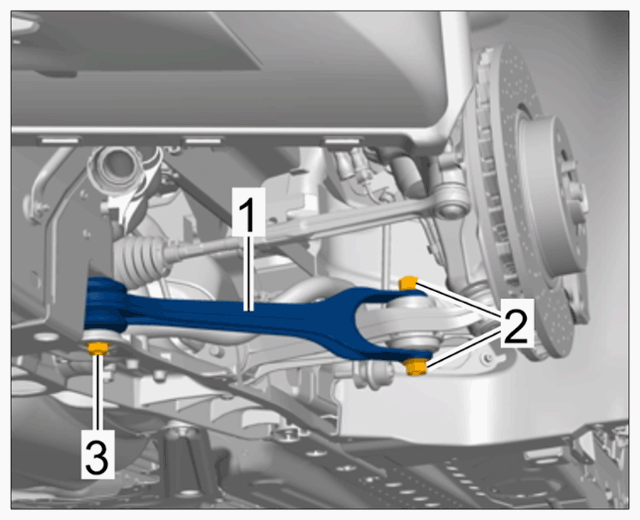

- Loosen threaded connection -2-
securing diagonal arm -1-
to lower trailing arm.
- Unscrew fastening screw -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Diagonal arm mounting
