Removing Lower Trailing Arm

WARNING: This page is about a different variant/trim than selected.

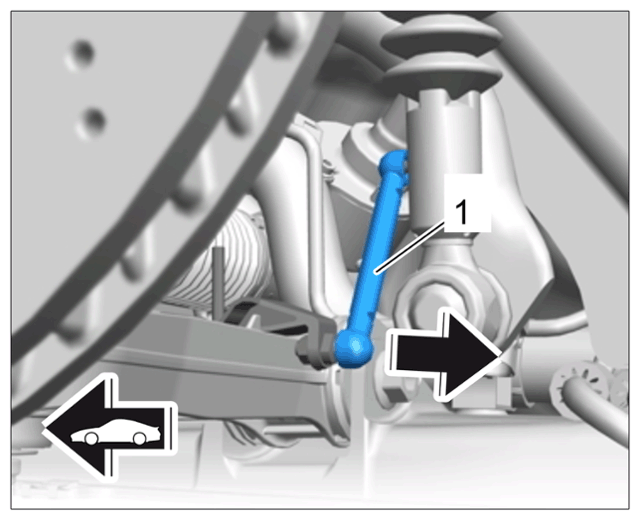

  1. Loosen ball joint on the level sensor linkage -1-  from the lower trailing arm.
    G14946874Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ball joint on level sensor

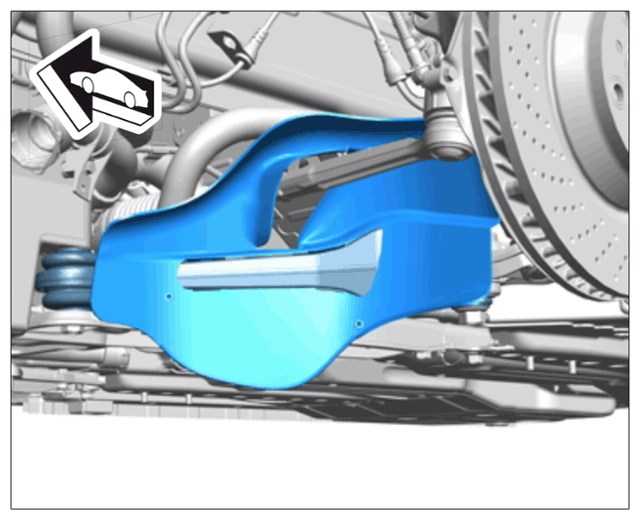

  2. Loosen control arm spoiler (air guide for brake Cooling) on the lower trailing arm and turn it up.
    G14946875Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control arm spoiler

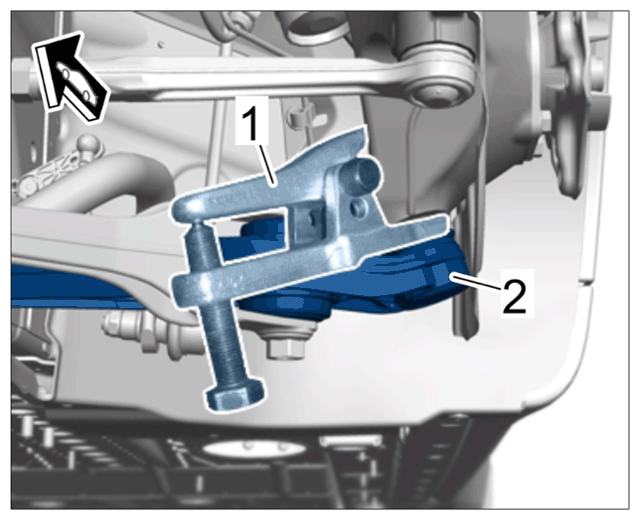

  3. Remove lower trailing arm from the wheel bearing housing.
    G14946876Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing lower trailing arm from wheel bearing housing

    1. 3.1  Coat the bellows and press-out tool with tire mounting paste to prevent damage to the bellows on the ball joint.
    2. 3.2  Unscrew fastening nut on the ball joint of the lower trailing arm -1-  and press off the ball joint using > 9560 - press-out tool-2-.

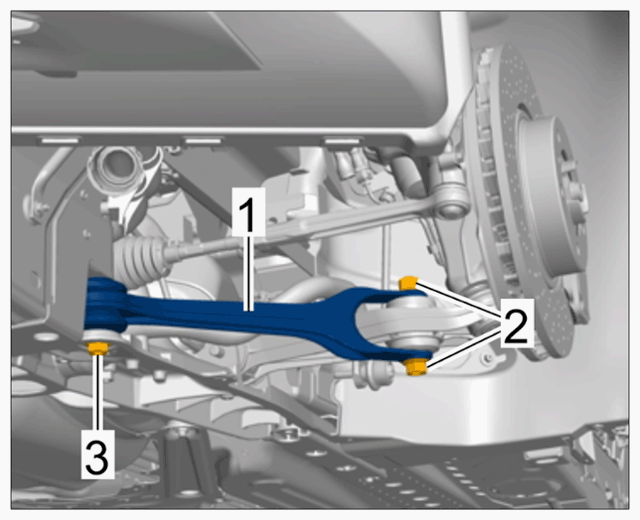

  4. Loosen threaded connection -2-  securing diagonal arm -1-  to lower trailing arm.
    G14946877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Diagonal arm mounting

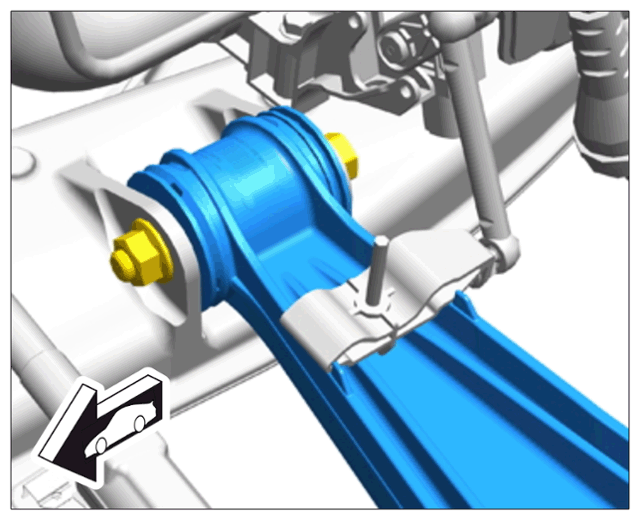

  5. Unscrew fastening screw securing lower trailing arm to front-axle cross member. > Lower trailing arm  to front-axle  cross member
    G14946878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower trailing arm to front-axle cross member

  6. Remove lower trailing arm.
