Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove cover above the plenum panel

    > 852219 REMOVING AND INSTALLING COVER - article on "Removing"

  2. Clean the spring-strut mount if necessary.

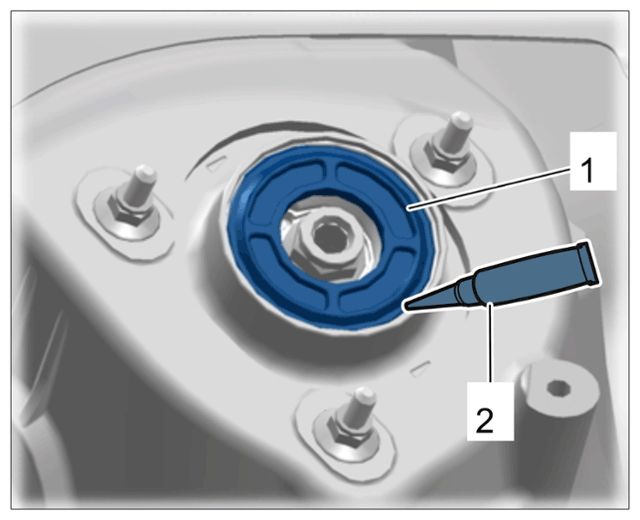

  1. Apply grease -2-  . as shown, in the outer area of the circlip -1-  .
    G14946971Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Applying sliding compound
