Oil Filling

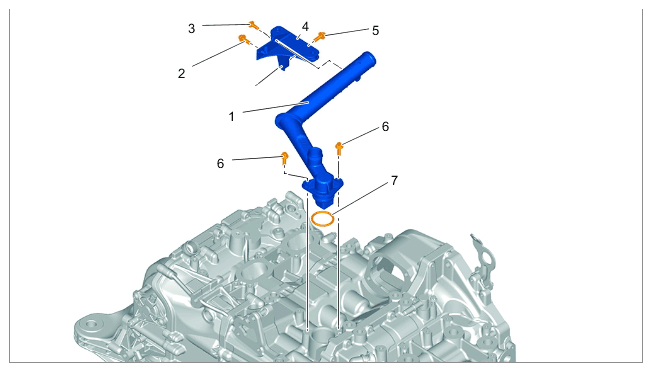

Fig 1: Oil Filling Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil filling

1. Oil-fill pipe
2. Screw, M6 x 16
3. Oval-head screw on oil-fill pipe holder, M6 x 18 > Tightening torque 13 Nm (9.5 ftlb.)
4. Oil-fill pipe holder
5. Screw, M6 x 25 > Tightening torque 13 Nm (9.5 ftlb.)
6. Screw for oil-fill pipe, M6 x 20 > Tightening torque 13 Nm (9.5 ftlb.)
7. O-ring, 34.52 x 3.53
