Assembly Overview - Oil Pump

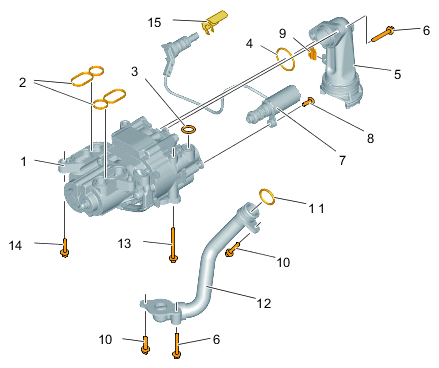

Fig 1: Oil Pump Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pump with add-on parts

1. Oil pump
2. Oil suction pump seal - replace
3. Oil pump seal - replace
4. O-ring, 30 x 2.5 - replace
5. Strainer
6. Screw, M6 x 45 > Tightening torque 13 Nm (9.5 ftlb.)
7. Oil pressure control valve with cable and connector
8. Countersunk screw, M6 x 23 > Tightening torque 13 Nm (9.5 ftlb.)
9. Cable clip
10. Screw, M6 x 16 > Tightening torque 13 Nm (9.5 ftlb.)
11. O-ring, 20 x 3 - replace
12. Oil pressure pipe
13. Screw, M6 x 80 > Tightening torque 13 Nm (9.5 ftlb.)
14. Screw, M6 x 30 > Tightening torque 13 Nm (9.5 ftlb.)
15. Spring clamp for cable plug for oil pressure control valve (outside of oil pan)

not shown  Oil pump gear screw, M8 x 22 - only use once > Initial tightening 5 Nm (3.5 ftlb.)  > Initial tightening 17 Nm (13 ftlb.)  > Torque angle 90°

> Initial tightening 3 Nm (2 ftlb.)  > Final tightening 8 Nm (6 ftlb.)  > Tightening torque 13 Nm (9.5 ftlb.)
