Engine Mount - Overview

WARNING: This page is about a different variant/trim than selected.

Engine mount:

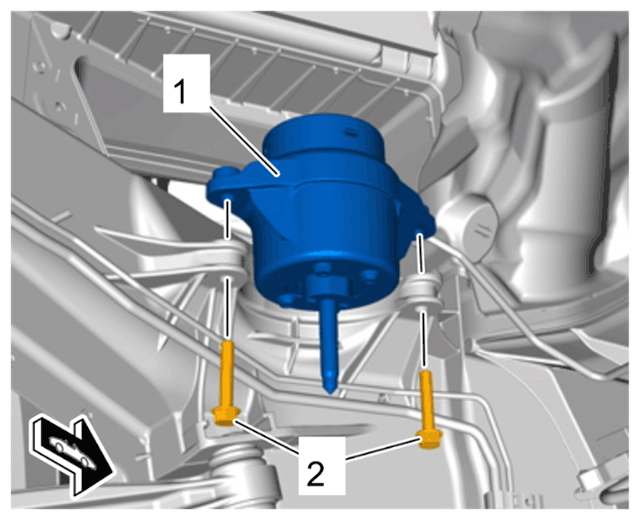

Fig 1: Engine Mount On Body Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount on body

Engine mount on bracket
Screw, M10 x 45 > Initial tightening 40 Nm (30 ftlb.) > Final tightening torque angle 45 Grad

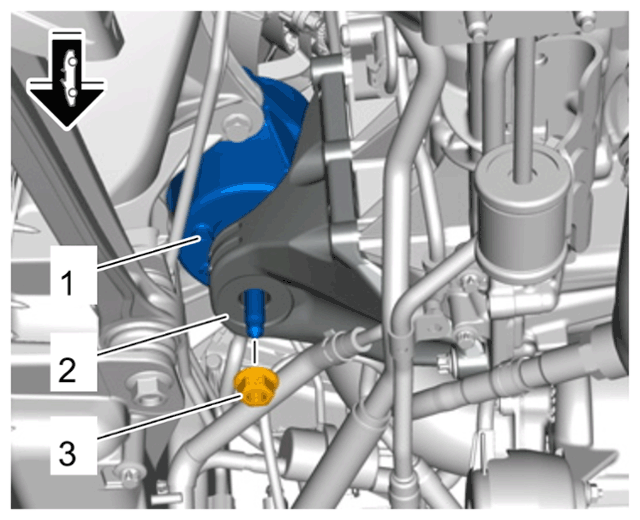

Fig 2: Engine Mount On Bracket Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount on bracket

Engine mount
Bracket for engine mount
Collar nut, M12 > Initial tightening 40 Nm (30 ftlb.) > Final tightening torque angle 90°
