Low-Temperature System For Charge-Air Cooling

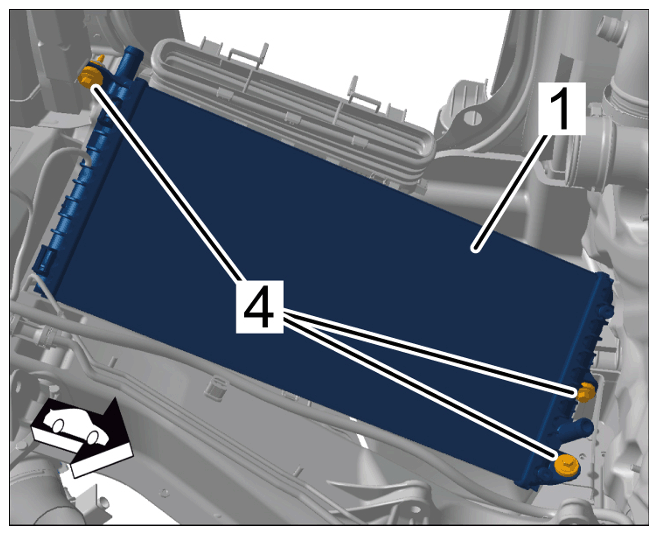

Fig 1: Low-Temperature Cooler Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low-temperature cooler

1. Low-temperature cooler
2. Screws for low-temperature cooler > Tightening torque 10 Nm (7.5 ftlb.)

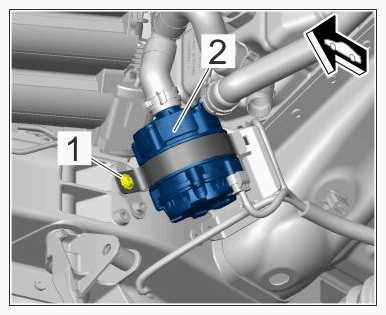

Fig 2: Additional Coolant Pump Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump

1. Screw for additional coolant pump > Tightening torque 8 Nm (6 ftlb.)
2. Additional coolant pump
