Assembly Overview - Coolant Regulator Housing

WARNING: This page is about a different variant/trim than selected.

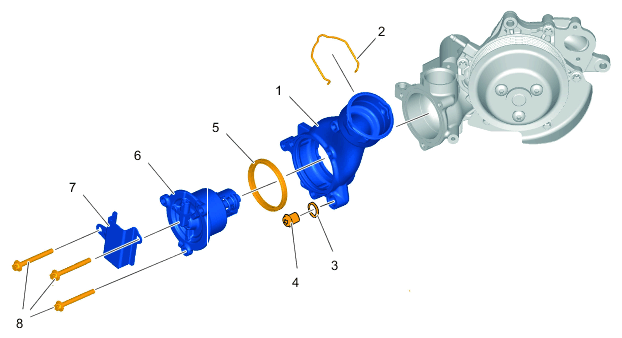

Fig 1: Coolant Regulator Housing Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator housing

Coolant regulator housing > Tightening torque 13 Nm (9.5 ftlb.)
Spring clamp
Sealing ring - replace
Drain plug, M14 x 1.5 in coolant regulator housing - replace sealing ring > Tightening torque 25 Nm (19 ftlb.) +/- 2 Nm (1.5 ftlb.)
Seal - replace if necessary
Coolant regulator
Heat shield
Screw, M6 x 55 > Tightening torque 13 Nm (9.5 ftlb.)

Location	Description	Type	Basic value
Coolant line holder	Screw, M6 x 12	Tightening torque	13 Nm (9.5 ftlb.)
Connecting tube to coolant pump	External Torx, M6 x 20	Tightening torque	13 Nm (9.5 ftlb.)
Coolant pump pulley	Screw, M8 x 16	Tightening torque	23 Nm (17 ftlb.)

Coolant collection unit, coolant pipes:

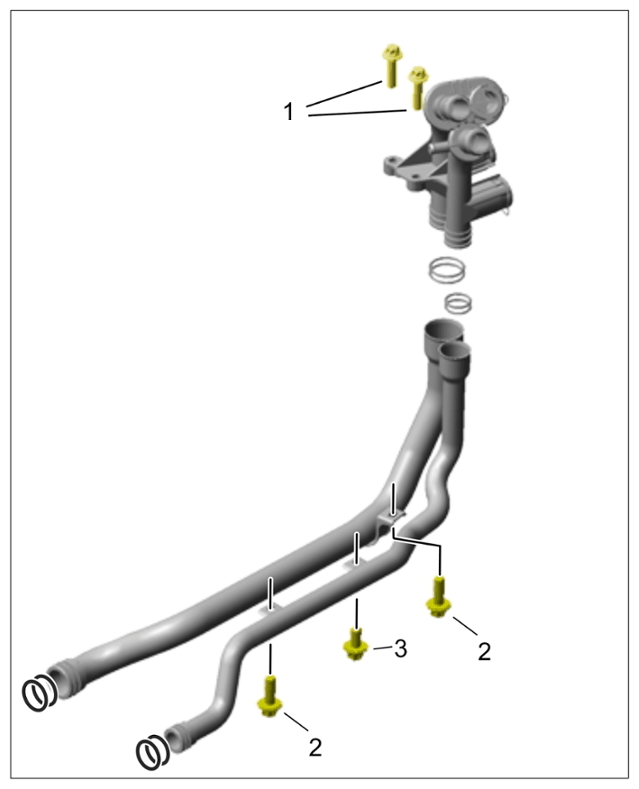

Fig 2: Coolant Pipes To Coolant Collection Unit Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipes to coolant collection unit
