Subsequent Work
WARNING: This page is about a different variant/trim than selected.
- Switch off ignition and remove remote control (hand-held transmitter).
- >9900 - PIWIS Tester 3 must now be disconnected from the vehicle.
- Disconnect the battery charger.
- Remove sensors and instrument holders.
Information
Before and after fitting the trim cover for the distance measuring sensor control unit, check the following points:
- The holder for the distance measuring sensor control unit must not show any signs of deformation, which may have been caused, for example, by removing or installing the trim cover for the distance measuring sensor control unit. If the holder for the distance measuring sensor control unit is deformed, carefully push it back into shape.
- If the trim cover is damaged or cracked, replace the trim cover.
- After fitting the trim cover, check that it is seated correctly and securely.
Variant without middle radiator
- Fit trim cover for the distance measuring sensor control unit.

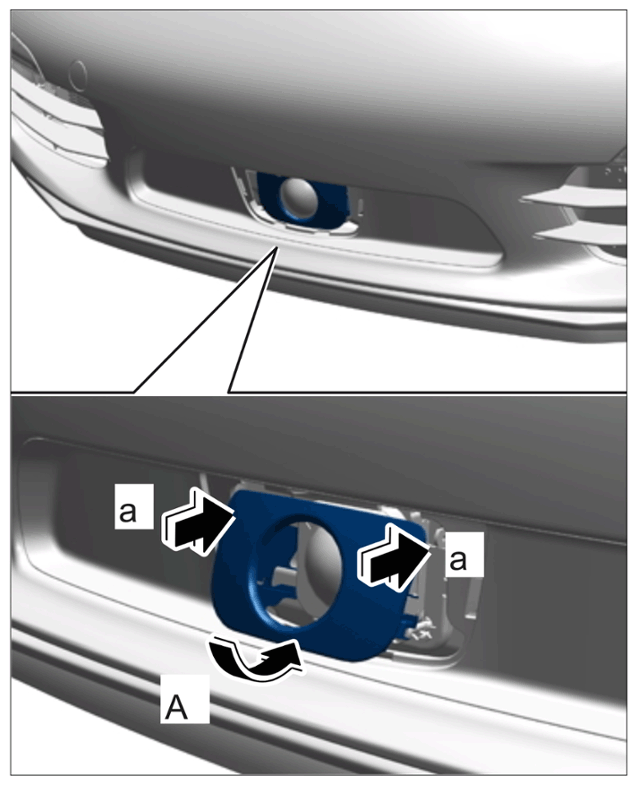

- 5.1 Engage trim cover -a- and bend it down -A - until it engages securely.
- 5.2 Continue with Step 7.
Variant with middle radiator
- Fit trim cover for the distance measuring sensor control unit.

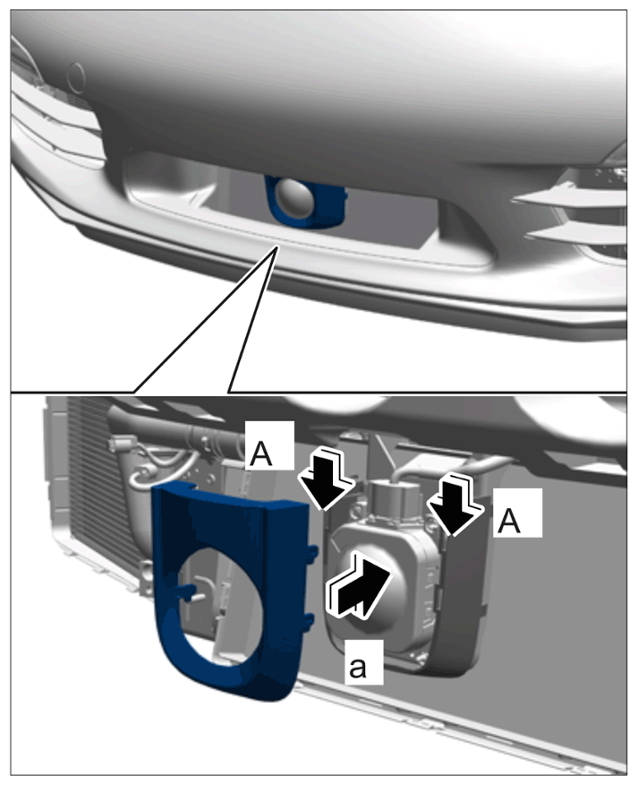

- 6.1 Fit trim cover -a- and push it down -A - until it engages securely.
- Perform a test drive and check operation of distance measuring sensor control unit.
- Read out the fault memory for the distance measuring sensor (ACC) control unit.
