Removing The Starter

WARNING: This page is about a different variant/trim than selected.

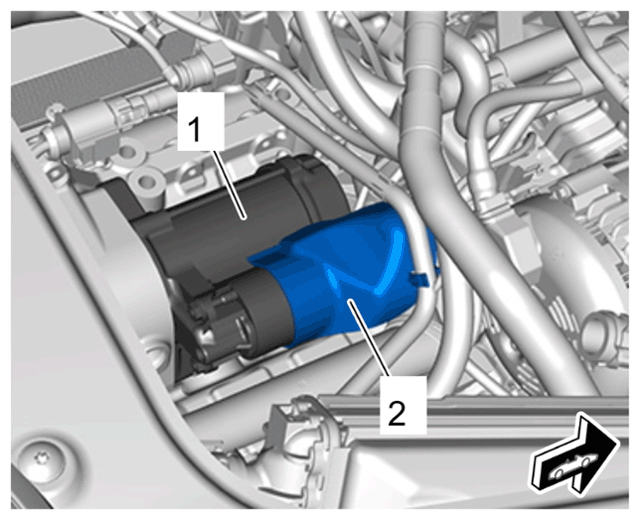

  1. Remove cap -2  - from the starter -1  -.
    G14945431Courtesy of PORSCHE CARS NORTH AMERICA, INC.

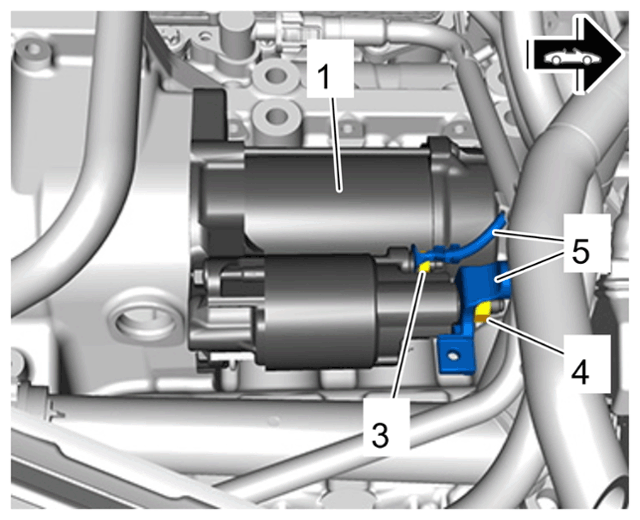

  2. Disconnect electric connections on the starter -1  -.
    1. 2.1 Screw off fastening nut securing B+ line -4  - to starter -1  -.
    2. 2.2 Screw off fastening nut securing terminal 50 -3  - to starter -1  -.
    3. 2.3 Remove electric lines -5  -.
    G14945432Courtesy of PORSCHE CARS NORTH AMERICA, INC.

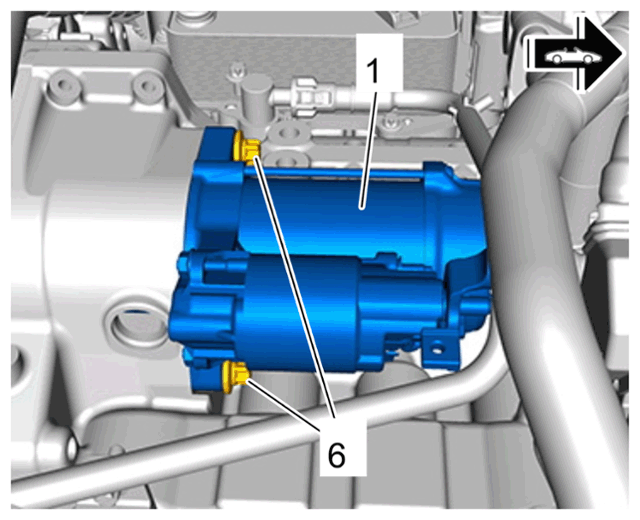

  3. Unscrew fastening screws -6  - for the starter -1  - and lift the starter -1  - up out of the engine compartment.
    G14945433Courtesy of PORSCHE CARS NORTH AMERICA, INC.
