Removing Battery

Information

• Switch off all loads and remove the ignition key.
• Do not disconnect the battery while the engine is running.
• Disconnect and re-connect battery with extreme caution.
• Do not rub the battery with a dry cloth.

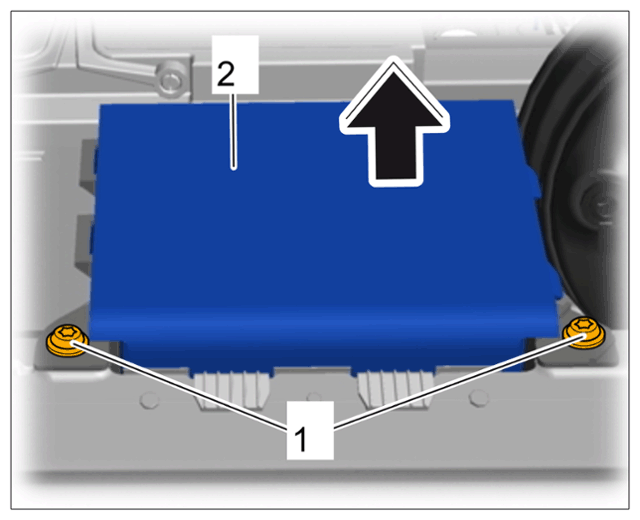

1. Unscrew screws -1  - and remove holder for compressor (puncture repair) -2  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

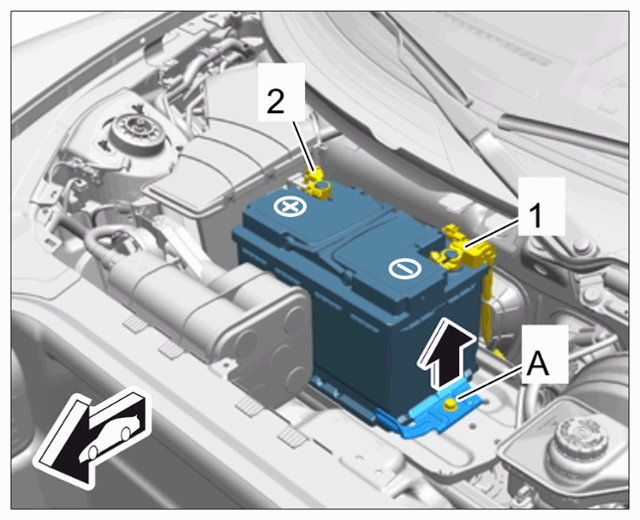

2. Disconnect negative cable -1  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Disconnect positive cable -2  -.
4. Unscrew screw -A  - and remove battery mount.

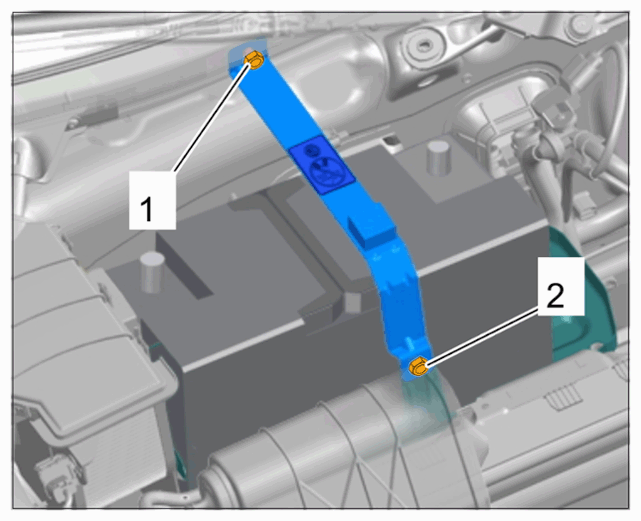

5. Unscrew nuts -1 and 2-  on the retaining bar and remove retaining bar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Lift the battery out of the technical equipment space.
