Installing Battery

WARNING: This page is about a different variant/trim than selected.

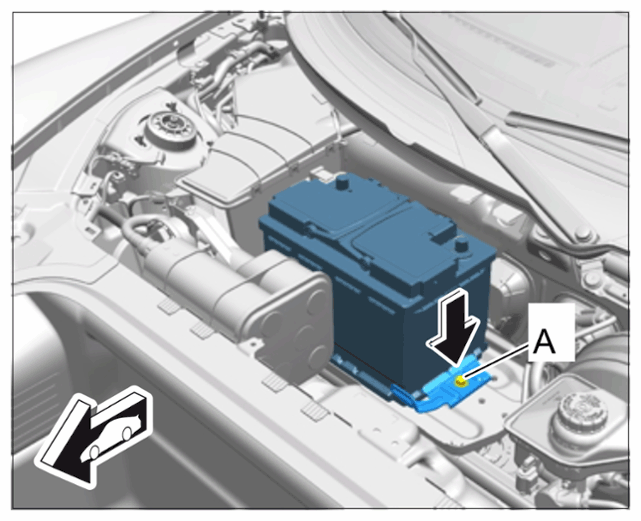

Insert the battery into the technical equipment space.
Fit the battery mount -arrow - and secure with the screw -A -. > Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

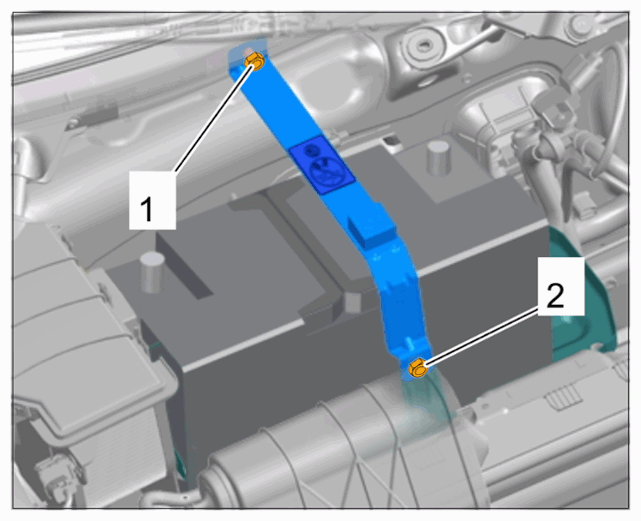

Position retaining bar and secure with nuts -1 and 2- .> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

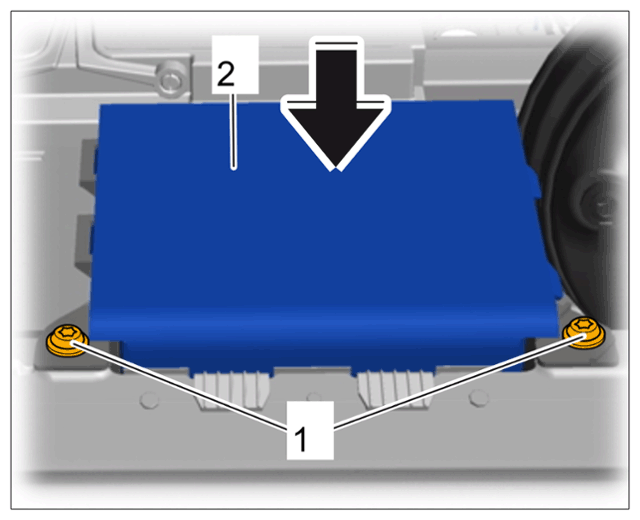

Position holder for compressor (puncture repair) -2 - and secure with screws -1 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

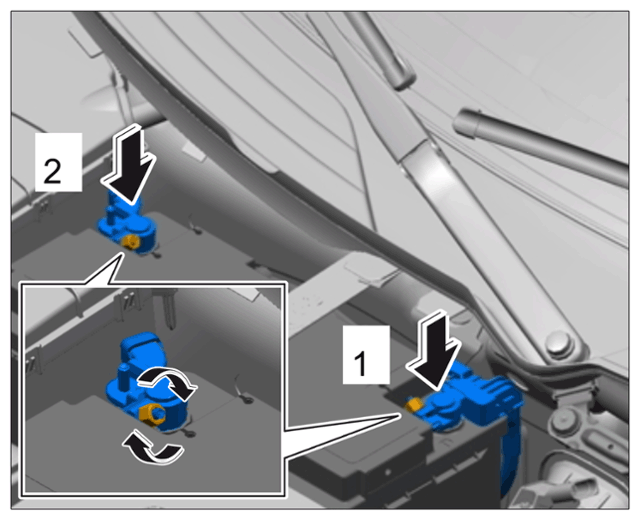

Connect positive cable -2 - to the battery. > Tightening torque 6 Nm (4.5 ftlb.)
Connect negative cable -1 - to the battery.> Tightening torque 6 Nm (4.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
