Removing And Installing Battery Sensor
WARNING: This page is about a different variant/trim than selected.

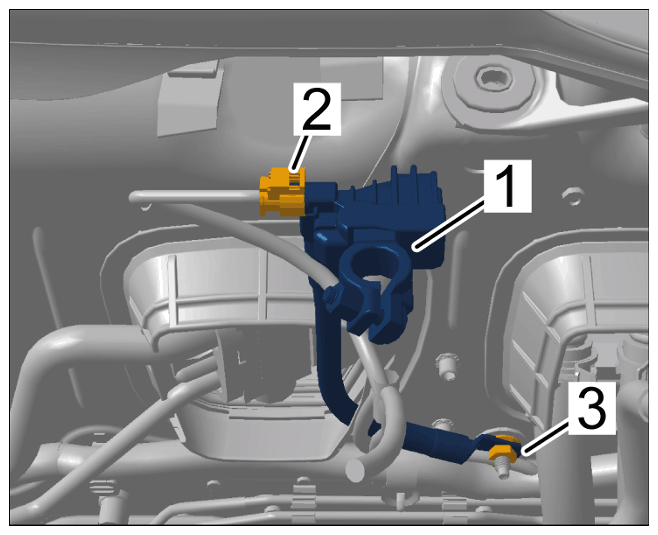

- Disconnect electric plug connection -2 -.
- Unscrew nut -3
- and remove battery sensor with ground line -1
-.
- Installation is performed in reverse order. Pay particular attention to the following:
Installation position of ground line.
Tightening torque for nut on ground line: > Tightening torque 15 Nm (11 ftlb.)
