Vehicle Height
WARNING: This page is about a different variant/trim than selected.
Information
- The following values relate to the empty weight, i.e. full fuel tank/fluid reservoirs, vehicle with tools, but without driver or additional weights!
| Vehicle height worldwide | Standard chassis ± 0 mm (I-no. 029) | PASM ± 0 mm (I-no. 477) | PASM-10 mm (I-no. 475) | PASM -20 mm (I-no. 030) |
|---|---|---|---|---|
| Front-axle height (control values) | ||||
| 18-inch wheels | 131 +/- 10 mm | 131 +/- 10 mm | 121 +/- 10 mm | 111 +/- 10 mm |
| 19-inch wheels | 134 +/- 10 mm | 134 +/- 10 mm | 124 +/- 10 mm | 114 +/- 10 mm |
| 20-inch wheels | 136 +/- 10 mm | 136 +/- 10 mm | 126 +/- 10 mm | 116 +/- 10 mm |
| Front-axle height: Measure from road contact surface to -Blue area- on luggage comp. panel (cross member/bulkhead) -Arrows- . | ||||
| Quick check: Distance from wing (lower edge) to center of wheel | 385 +/- 10 mm | 385 +/- 10 mm | 374 +/- 10 mm | 364 +/- 10 mm |

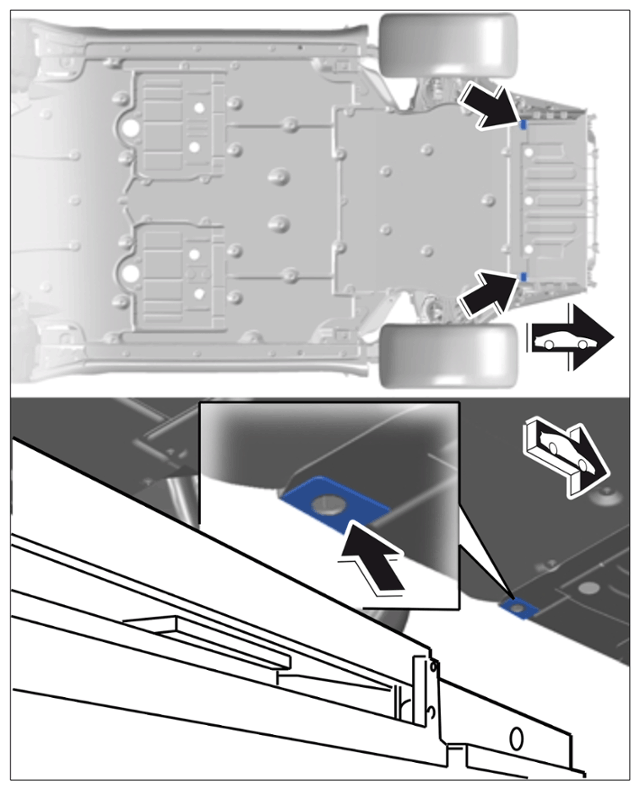

Measuring point for front-axle height
| Vehicle height worldwide | Standard chassis. ± 0 mm (I-no. 029) | PASM ± 0 mm (I-no. 477) | PASM - 10 mm (I-no. 475) | PASM - 20 mm (I-no. 030) |
|---|---|---|---|---|
| Rear-axle height (control values) | ||||
| 18-inch wheels | 164 +/- 10 mm | 164 +/- 10 mm | 154 +/- 10 mm | 144 +/- 10 mm |
| 19-inch wheels | 164 +/- 10 mm | 164 +/- 10 mm | 154 +/- 10 mm | 144 +/- 10 mm |
| 20-inch wheels | 163 +/- 10 mm | 163 +/- 10 mm | 153 +/- 10 mm | 143 +/- 10 mm |
| Rear-axle height: Measure from road contact surface to lower edge of diagonal brace (between the ribs) at wishbone fastening point -Arrow- . | ||||
| Quick check: Distance from wing (lower edge) to center of wheel | 395 +/- 10 mm | 395 +/- 10 mm | 384 +/- 10 mm | 374 +/- 10 mm |
| Permitted longitudinal inclination of the vehicle: Maximum total deviations at front and rear = 10 mm | ||||
| Permitted transverse inclination of the vehicle: Maximum difference in height, left to right = 5 mm | ||||
| Maximum wheel-load difference, right to left, on front and rear axle = 20 kg | ||||

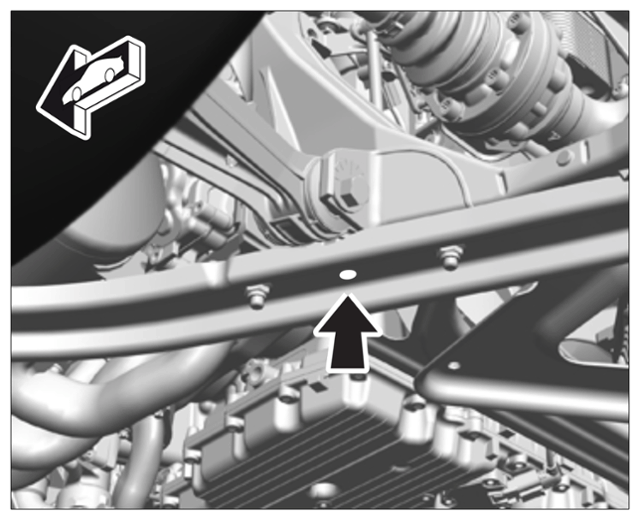

Measuring point for rear-axle height
