Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Spring strut mount to body | Hexagon nut (M8) | Tightening torque | 33 Nm (24.3 ftlb.) | ||
| Aluminium tie rod to axial joint | Lock nut, M14 x 1.5 | Tightening torque | 50 Nm (37 ftlb.) | ||
|

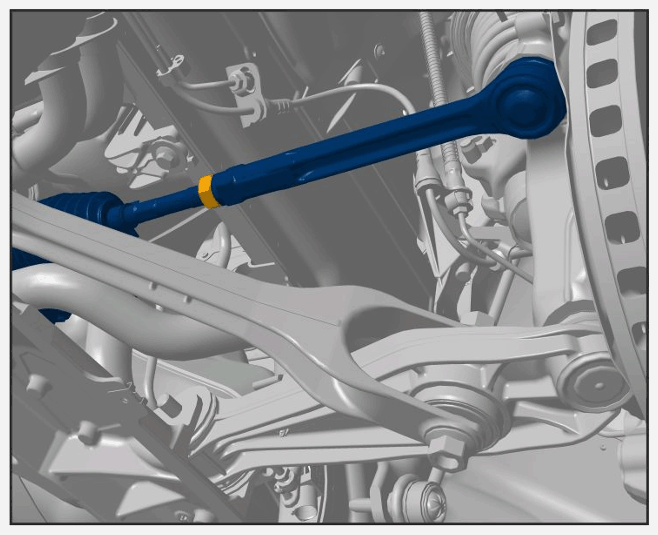

Aluminium tie rod to axial joint |
|||||
| Steering tie rod to rear axle carrier side part (toe eccentric adjuster) | Replace M12 x 1.5 lock nut | Tightening torque | 110 Nm (81.1 ftlb.) | ||
| Lower trailing arm to rear axle carrier side part (camber eccentric adjuster) | M12 x 1.5 | Tightening torque | 110 Nm (81.1 ftlb.) | ||
