Adjusting Rear-Axle Toe

WARNING: This page is about a different variant/trim than selected.

Turn toe eccentric adjuster -2- as required after loosening the lock nut.
Then tighten lock nut on toe eccentric adjuster to > Tightening torque 110 Nm (81.1 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

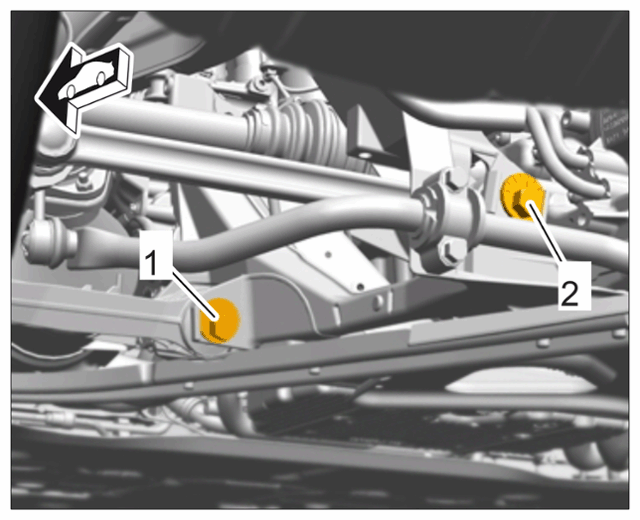

Camber and toe eccentric adjuster
1. 1.1 The hexagon nut on the toe eccentric adjuster is loosened and tightened using > 9847 - socket-wrench insert-3- together with > 9626 - insert for torque wrench-4- and commercially available torque wrench -5- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

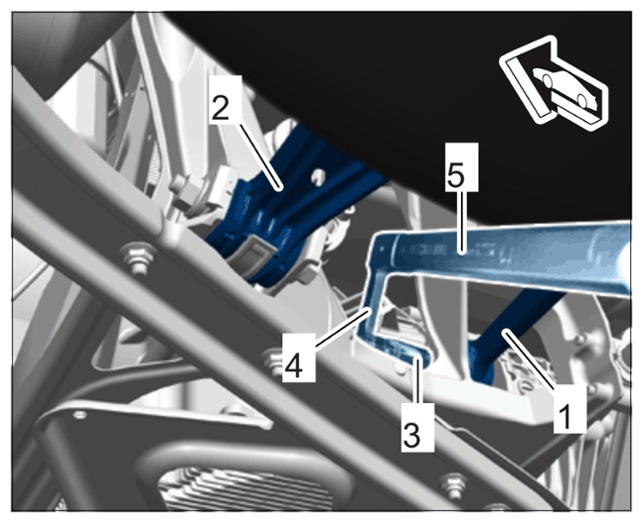

Loosening and tightening hexagon nut on toe eccentric adjuster
1. Toe control arm
2. Wishbone
3. Socket-wrench insert 9847
4. Insert for torque wrench 9626
5. Torque wrench
