Adjusting Front-Axle Toe

To do this, perform the following steps:

1. 1.1  Move steering gear to center position.
2. 1.2  Turn wheels to straight-ahead position.
3. 1.3  Then, adjust the front wheel alignment if necessary until the center position marking -1-  is aligned with the arrow.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

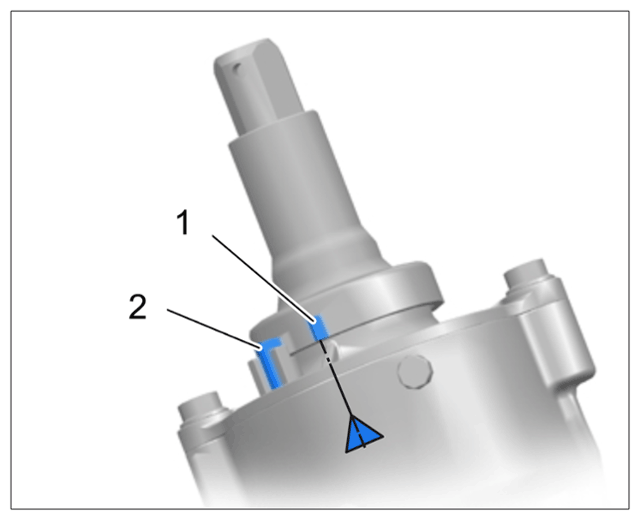

   Steering gear in center position

   1. Centre position marking
   2. Desired breaking point of retaining pin in new steering gears

   If the front underbody panelling is fitted, the position of the center position marking can be checked using a mirror.

4. 1.4  Re-position the steering wheel if necessary. When re-positioning the steering wheel, try to find the best position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

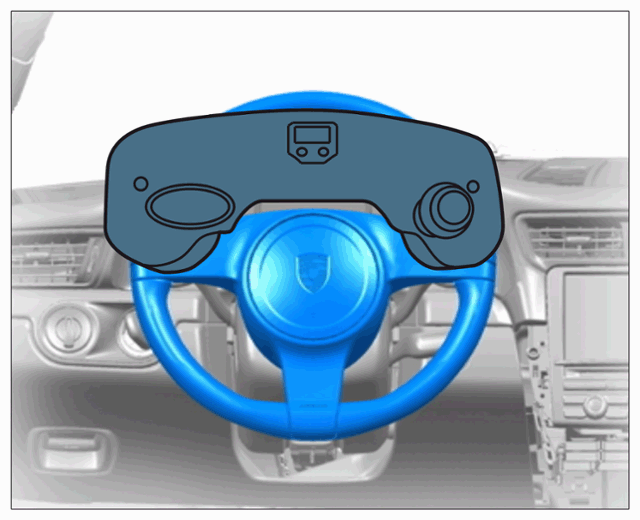

Steering wheel holder

For fast and reliable steering wheel alignment in center position, use a -steering wheel balance-  (with integrated angle measurement box)

> WEI 343 Steering wheel balance

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

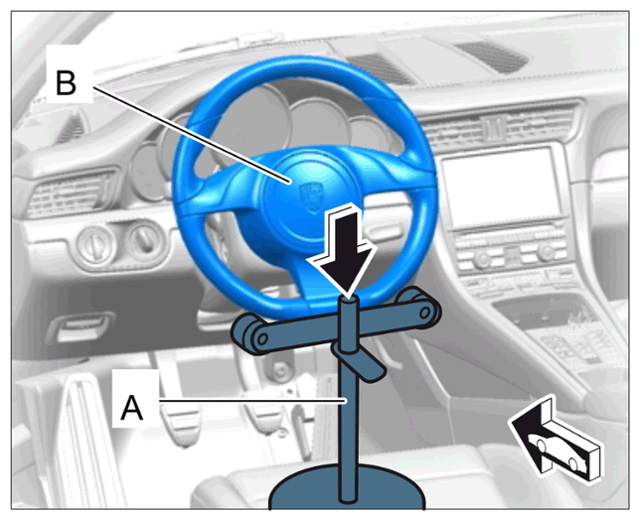

Steering wheel balance

1. 3.1  Loosen lock nut -2-  . To do this, counter at the tie-rod ball -3-  using a suitable open-ended wrench.

   Then, with the steering wheel in center position, adjust the toe at the hexagon -1-  on the tie rod(s) using a suitable open-ended wrench.

   Then tighten the lock nut (on the relevant tie rod) to > Tightening torque 50 Nm (37 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

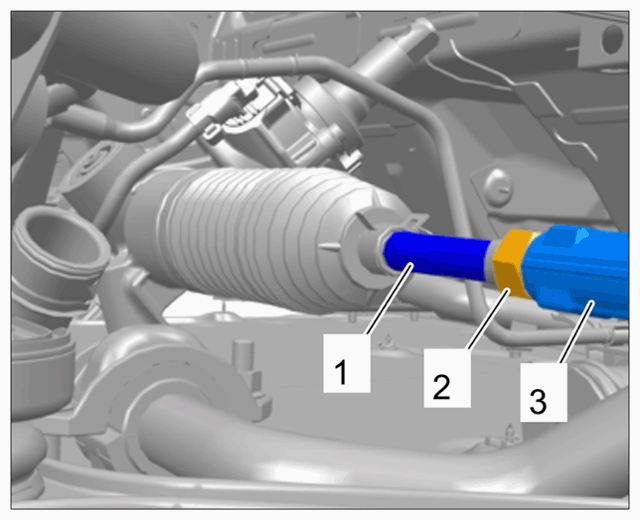

   Adjusting front-axle toe

2. 3.2  To loosen and tighten the lock nut, use > 9730 - socket-wrench insert -A-  together with a torque wrench -B-  .

   The tightening torque for the lock nut of 50 Nm (37 ftlb.), when using socket-wrench insert 9730 -A-  , corresponds to a value of approx. 32.5 Nm (24 ftlb.) on the torque wrench.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

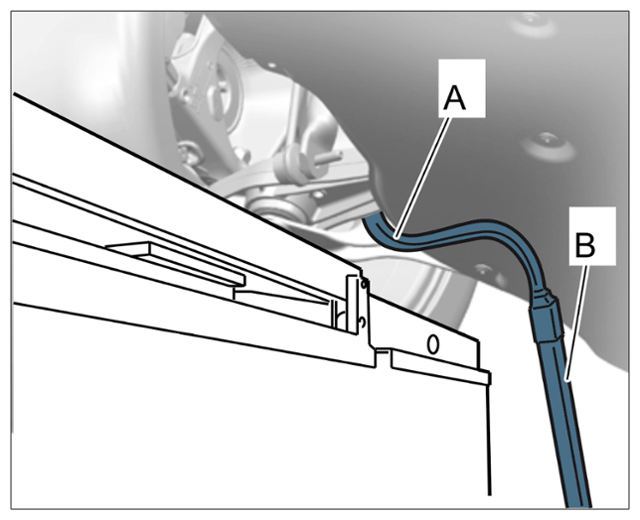

Loosening and tightening tie-rod lock nut
