REMOVING AND INSTALLING CONTROL UNIT FOR Tire PRESSURE MONITORING (TPM)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  • Remove the ignition key and switch off load before disconnecting or removing load.

Information

Before installing the control unit, check component and electric plug connection for damage and replace them if necessary

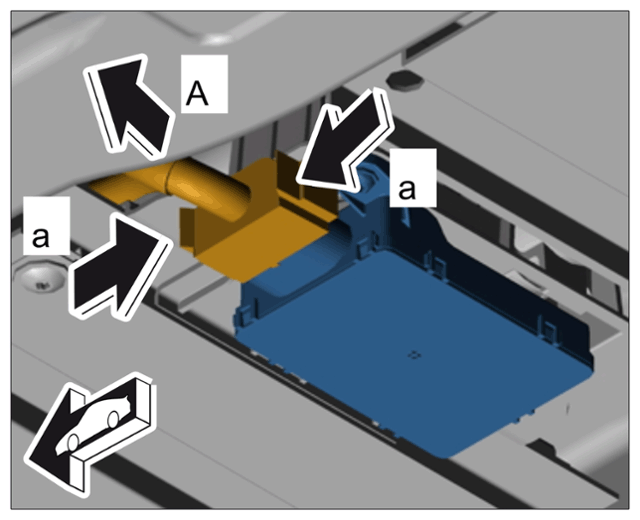

1. Release electric plug connection -arrows a-  and disconnect it -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting electric plug connection

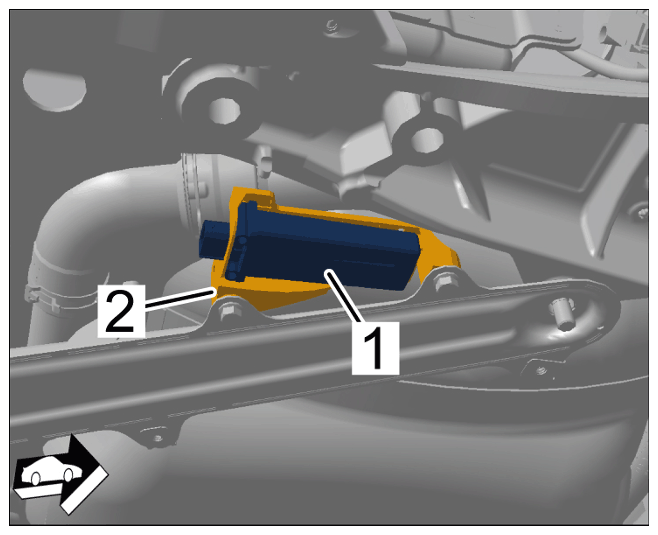

2. Unclip TPM control unit -1-  from holder -2-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing control unit for Tire Pressure Monitoring (TPM)

3. Installation is performed in reverse order.
