Removing Wheel

WARNING: This page is about a different variant/trim than selected.

NOTIFICATION

Removing/fitting wheels

Risk of damage to (ceramic) brake discs
- Use two assembly pins when removing and fitting the wheel.
- Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Remove the wheel.
Information
- Order assembly aids using PET.
- Use a wheel fitting trolley to make fitting easier.
1. 1.1 On vehicles with PCCB (I-no. 450)
  Unscrew and remove two wheel bolts that are not next to each other.
2. 1.2 On vehicles with PCCB (I-no. 450)

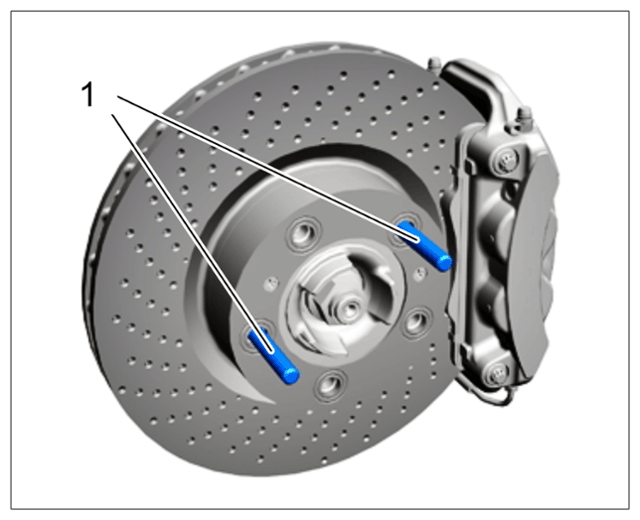

  Replace the removed wheel bolts with assembly aids -1- .
3. 1.3 Unscrew and remove wheel bolts or the remaining wheel bolts.
4. 1.4 Carefully take off the wheel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing assembly aids (threaded bolts for fitting wheel)
