Removing And Installing Control Unit For Fuel Pump

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

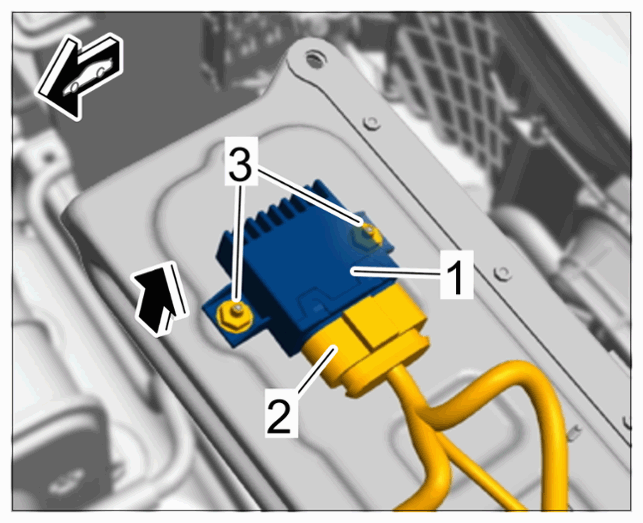

1. Unscrew nuts -3  -.
2. Remove control unit for fuel pump -1  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Installation is performed in reverse order.
4. Screw in and tighten nuts. > Tightening torque 2.5 Nm (2 ftlb.) (1.8 ftlb.)
