Removing Fuel-Level Sensor

WARNING: This page is about a different variant/trim than selected.
G14945049Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    • → Avoid contact with hot parts or sources of ignition.
    • → Use suction to remove ignitable vapours.
    • → Attach warning sign in a clearly visible position.
    • → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    • → Secure collection containers/vessels to prevent them from tipping over.

Information

Mark the installation position with a touch-up stick before removing the fuel level sender.

Information

Replace flange gasket on the fuel tank.

  1. Place a warning sign in a clearly visible position in the work area or on the vehicle.
    G14945050Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect vacuum line for the brake booster.

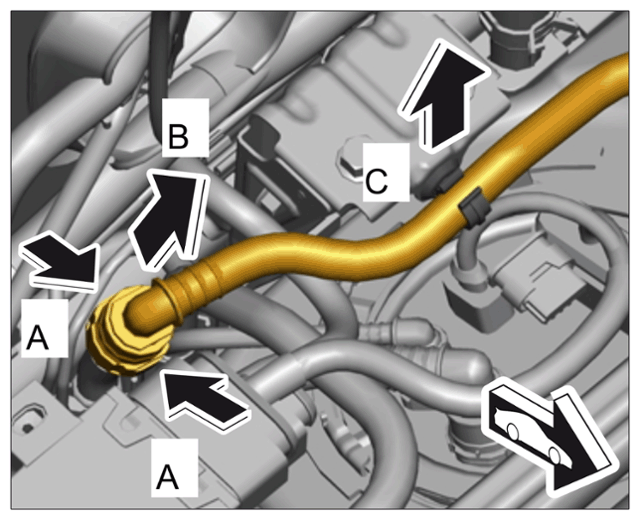

    1. 2.1 Release vacuum line -arrows A  - and pull it off the coupling -arrow B  -.
    2. 2.2 Unclip vacuum line -arrow C-  .
    G14945051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

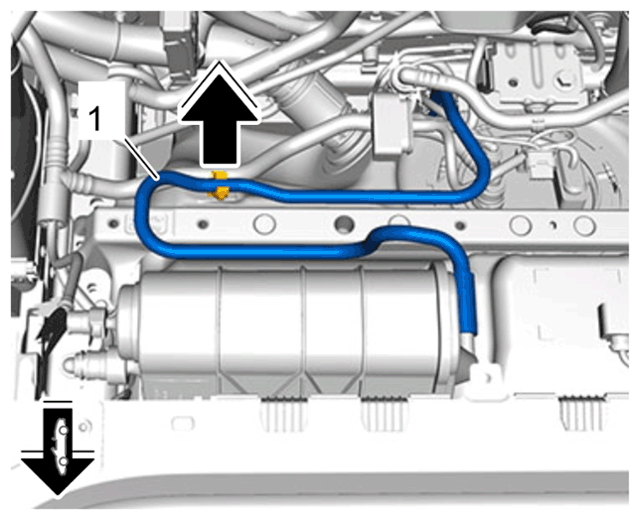

  3. Only for active carbon filters without leakage diagnosis unit  : Unclip vacuum line on carbon canister -1  - (-arrow  -).
    G14945052Courtesy of PORSCHE CARS NORTH AMERICA, INC.

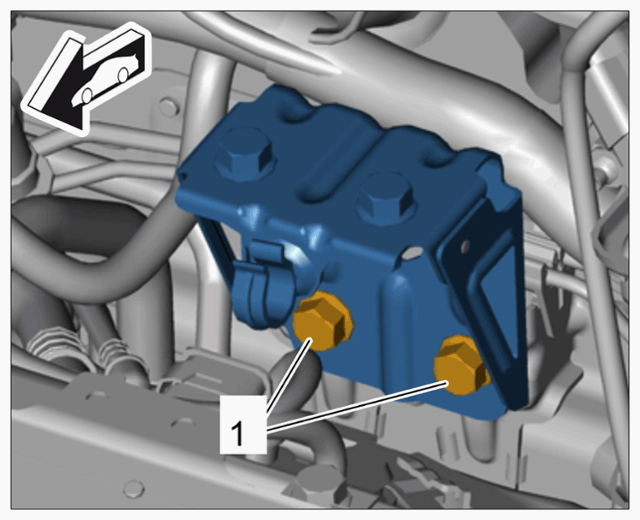

  4. Unscrew screws -1  - and remove mounting for battery console.
    G14945053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

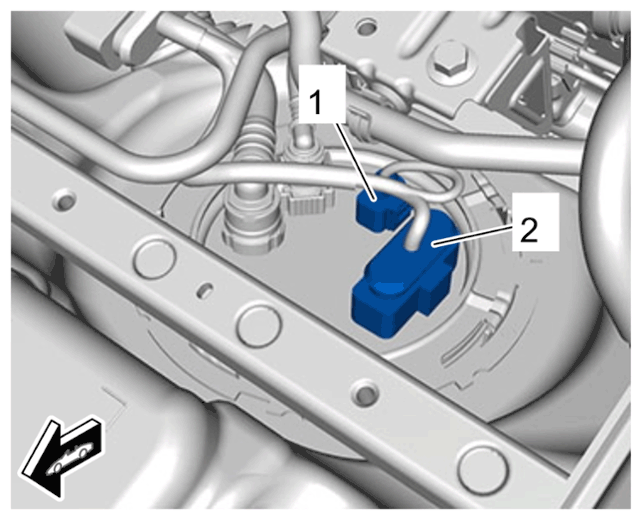

  5. Release and disconnect electric plug connections -1 and 2-  at the fuel level sender.
    G14945054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Watch out for emerging fuel when disconnecting fuel lines. Place a clean cloth on the connection point, then loosen the connection.

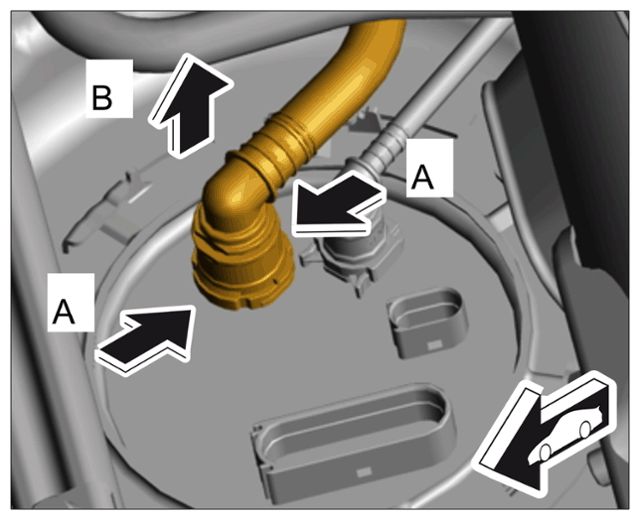

  6. Release -arrows A  - and pull off -arrow B  - vent line.
    G14945055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

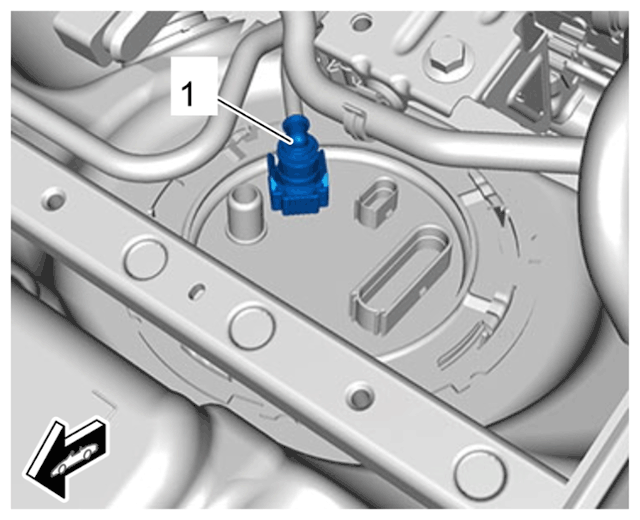

  7. Release and pull off the fuel line -1  -.
    G14945056Courtesy of PORSCHE CARS NORTH AMERICA, INC.

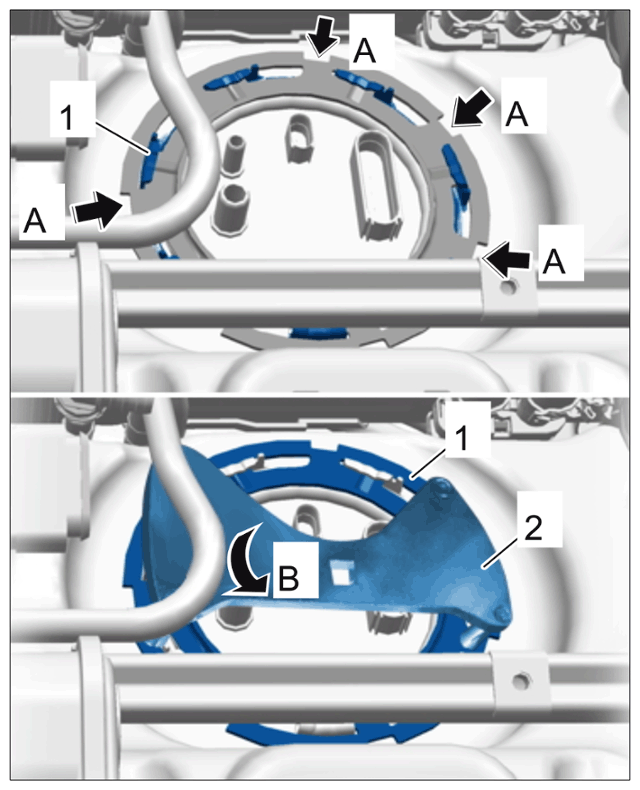

  8. Screw off locking ring -1  - on the sender.
    1. 8.1 Mark installation position of sender and locking ring -1  -.
    2. 8.2 > 9731/1 - Lug wrench-2  - must be inserted into the grooves -arrows A  -.
    3. 8.3 Release locking ring -1  - by turning it anti-clockwise -arrow B  - and remove it.
      IMPORTANT: High loosening force for locking lugs on the locking ring.
    G14945057Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Remove fuel level sender.
    1. 9.1 Lift the sender up slightly.

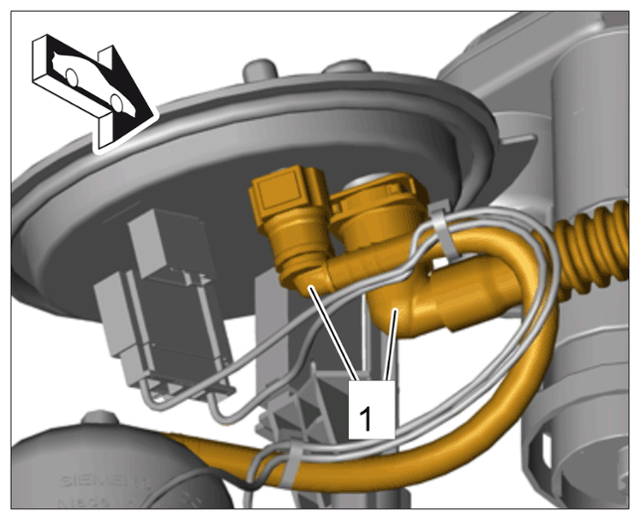

    2. 9.2 Release both plug connections -1  - for the fuel lines and disconnect them.
      G14945058Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 9.3 Release and disconnect electric plug connection -1  -.
      G14945059Courtesy of PORSCHE CARS NORTH AMERICA, INC.

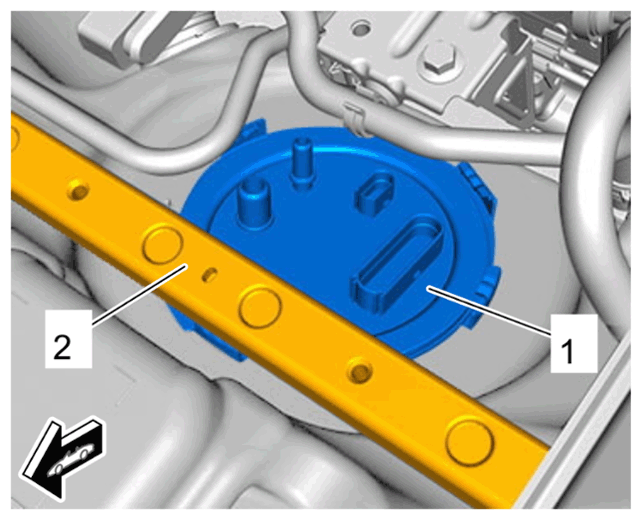

    4. 9.4 Carefully remove fuel level sender -1  - by moving it past the reinforcement strut -2  - and out of the fuel tank.
    G14945060Courtesy of PORSCHE CARS NORTH AMERICA, INC.
