Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fuel tank to body | Screw, M8 x 40 | Tightening torque | 23 Nm (17 ftlb.) | ||
| Filler neck to body | Screw, M6 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
| Holder for coolant pipe (front-axle carrier, front) | Screw, M6 x 35 | Tightening torque | 10 Nm (7.5 ftlb.) | ||

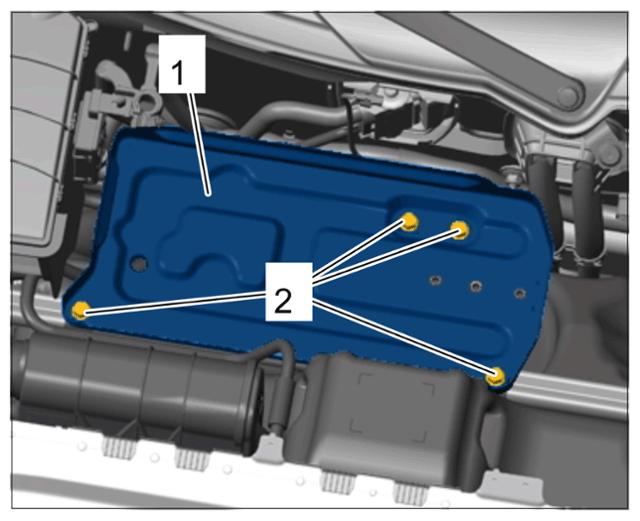

| Battery console to body | 2 | Tightening torque | 23 Nm (17 ftlb.) |
