Component Overview - Fuel Tank

WARNING: This page is about a different variant/trim than selected.

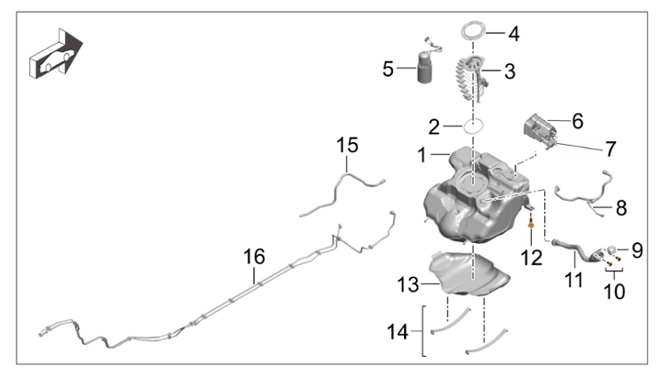

Fig 1: Fuel Tank Components Location
G14945020Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel tank
  2. Sealing ring
  3. Fuel level sensor
  4. Locking mechanism for fuel level sensor
  5. Fuel pump
  6. Carbon canister (view of USA/Canada version)
  7. Leakage diagnosis unit (for USA/Canada)
  8. Tank vent line
  9. Fuel tank cap
  10. Fastening screws for filler neck
  11. Filler neck
  12. Fastening screw for fuel tank
  13. Protective pan for fuel tank
  14. Retaining strap for fuel tank
  15. Fresh-air line
  16. (12)  Set of fuel lines to engine
