Installing Low-Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
- Coat the thread of the low-pressure sensor with Microgleit DF977S (Part No. 000.043.209.35).

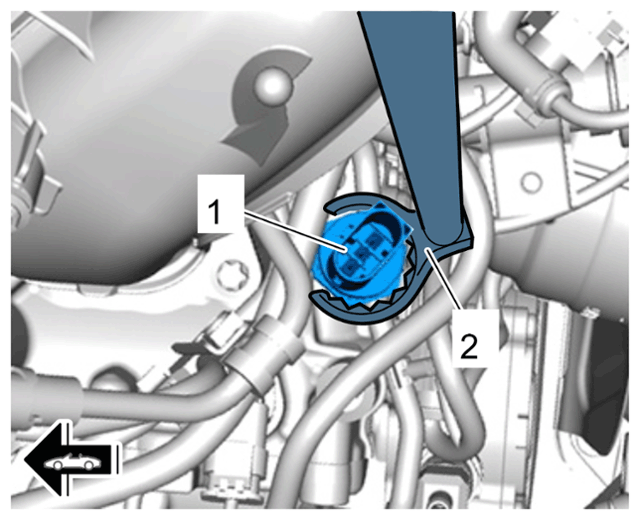

- Screw in low-pressure sensor -1
- and tighten using > 9821 - open-ended wrench insert, a/f 27-2
-.
> Tightening torque 22 Nm (16 ftlb.) +/- 2 Nm (1.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Insert cable plug.
