Tools And Materials: Notes

WARNING: This page is about a different variant/trim than selected.

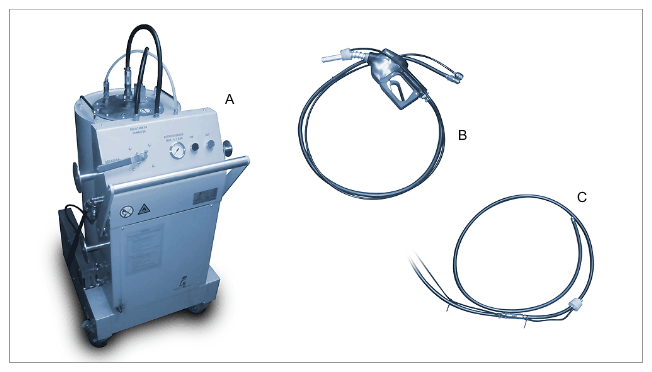

G14944993Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. > VAS 5190A - Fuel extractor  (This unit has been tested and approved by PORSCHE)
  2. Special accessory: fuel nozzle (The fuel nozzle switches off automatically when the fuel tank is full)
  3. Suction line with venting device (rubber taper with transparent hose)

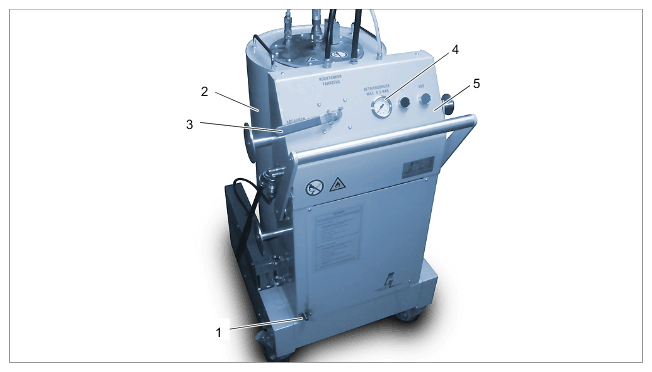

G14944994Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Compressed air connection (connection for unlubricated/oil-free compressed air)
  2. 110 litre fuel tank (exchangeable tank, the scale on the side starts at 10 liters. All other markings are shown in 5-liter steps)
  3. Changeover lever (for extracting fuel/refuelling vehicle)
  4. Operating pressure display of the pump (The pressure must not exceed 6.5 bar)
  5. On/Off switch for pump
