Additional Information On Recommended Fuel Transfer Units

WARNING: This page is about a different variant/trim than selected.
  1. > VAS 5190A - Fuel extractor  must now be prepared for extracting fuel.
    1. 1.1 Connect the fuel hose -1  - to the changeover tank.
    2. 1.2 Connect the venting device (transparent hose) -2  -.
    3. 1.3 Position the pneumatic stop switch -3  - on the tank and secure with two knurled nuts.
    4. 1.4 Then connect the suction hose to the connection -1  -.

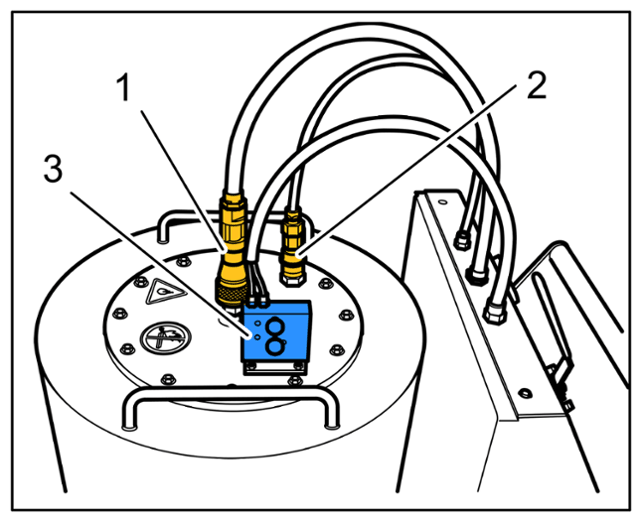

    G14944995Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect the earth cable.
    1. 2.1 For both units, the earth cable must be connected to the ground point on the vehicle while working!
  3. >VAS 5190A - Fuel extractor
    1. 3.1 Move lever -1  - to Filling -3  - or Pumping out -4  - position.
    2. 3.2 Switch the pump on or off using lever -2  -.

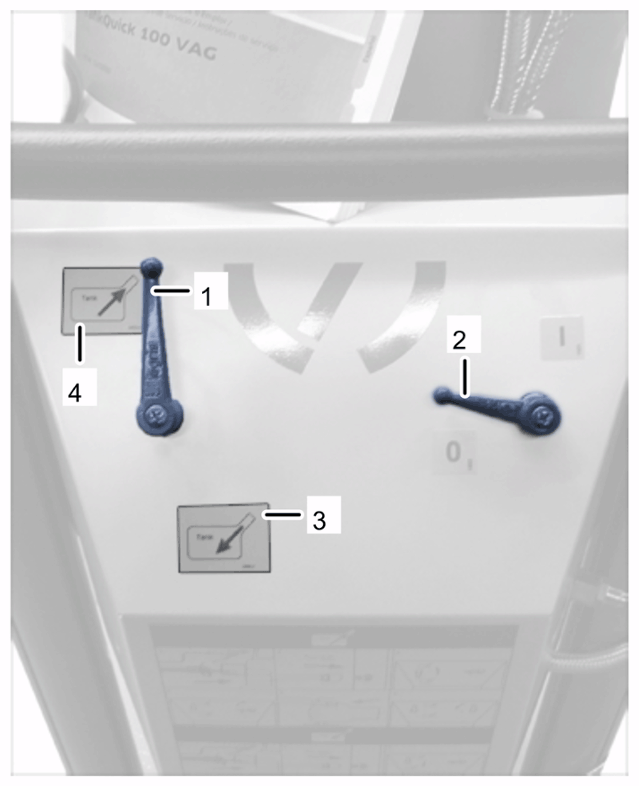

    G14944996Courtesy of PORSCHE CARS NORTH AMERICA, INC.
