Assembly Overview - Exhaust Manifold

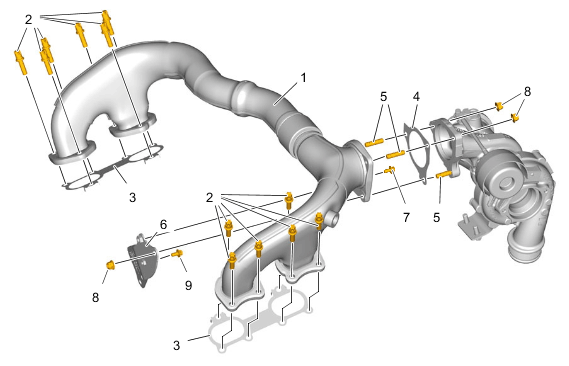

Fig 1: Exhaust Manifold Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Exhaust manifold
2. Screws > Initial tightening 15 Nm (11 ftlb.)  > Final tightening + 45°
3. Seal/replace
4. Seal/replace
5. Studs/replace  > Tightening torque 12 Nm (9 ftlb.) + 4 Nm (3 ftlb.)
6. Holder
7. Screw > Tightening torque 25 Nm (19 ftlb.)
8. Nuts/replace  > Tightening torque 25 Nm (19 ftlb.) +/- 10 %
9. Screw > Tightening torque 10 Nm (7.5 ftlb.)

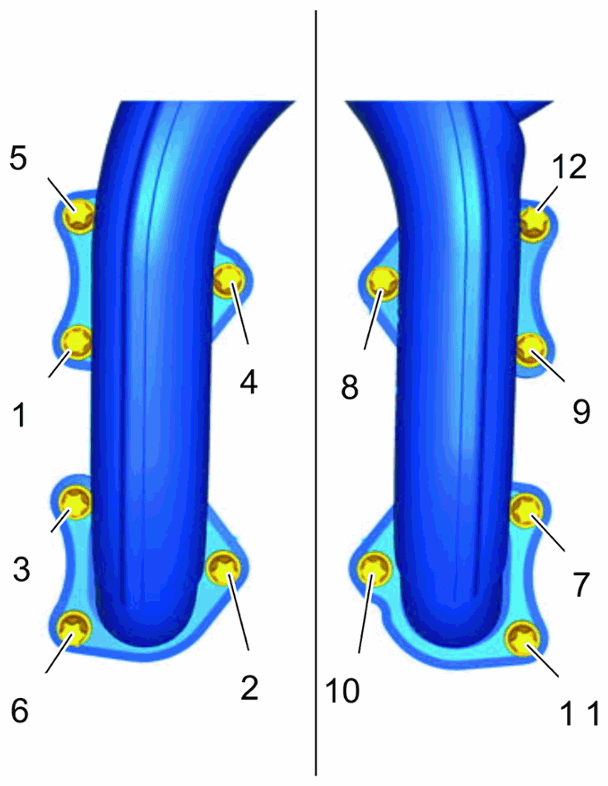

Tightening sequence for exhaust manifold

Fig 2: Exhaust Manifold Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
