Adjusting Tailpipe Cover

WARNING: This page is about a different variant/trim than selected.

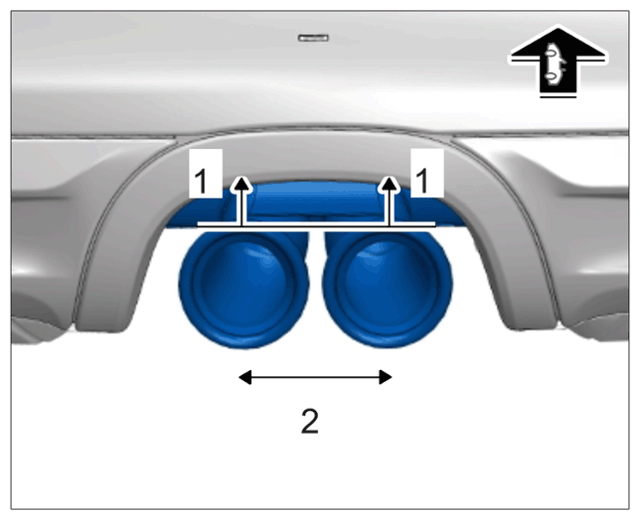

Align tailpipe cover with respect to rear apron: Boxster S/Cayman S .
1. 1.1 Align tailpipe cover with respect to center of rear apron -2 -.
2. 1.2 Tailpipe cover (Boxster S/Cayman S): Gap with respect to top of rear apron -1 -. > Gap dimension 14 mm +/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

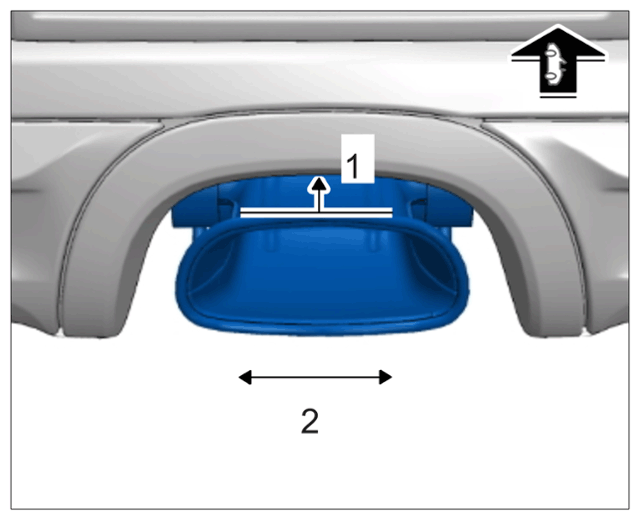

Align tailpipe cover with respect to rear apron: Boxster/Cayman .
1. 2.1 Align tailpipe cover with respect to center of rear apron -2 -.
2. 2.2 Tailpipe cover, Boxster/Cayman: Gap with respect to top of rear apron -1 -.
  > Gap dimension 19 mm +/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

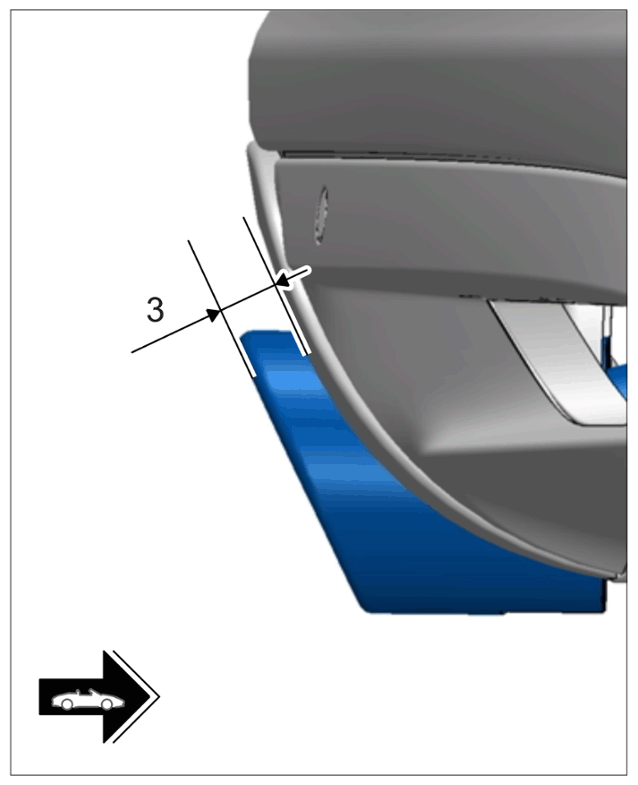

Gap with respect to rear apron -3 - may not be adjusted in direction of travel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

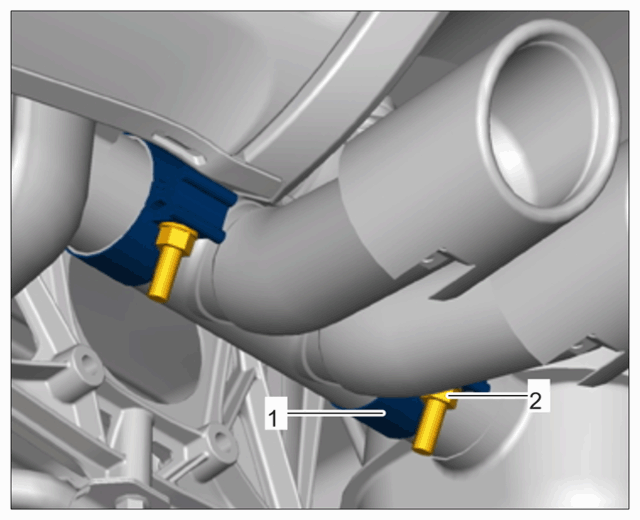

Tighten fastening nut -2 - on the clamp -1 -.
Tailpipe cover, 2.5 litre: > Tightening torque 55 Nm (40.6 ftlb.)

Tailpipe cover, 2.0 litre: > Tightening torque 55 Nm (40.6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
