Removing Heat Shield

WARNING: This page is about a different variant/trim than selected.

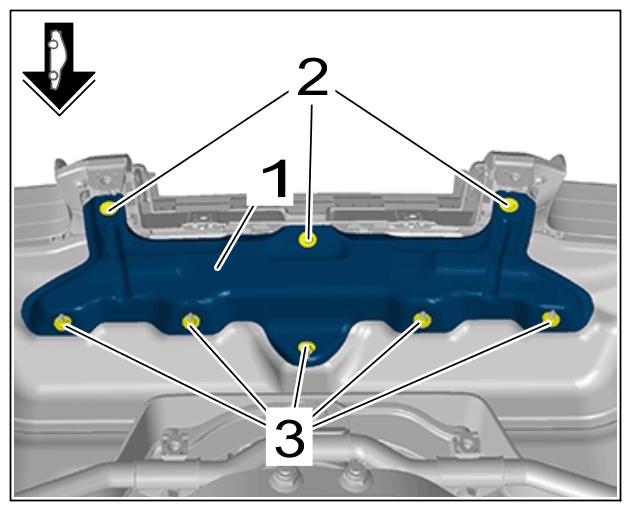

Basic/S: Remove center heat shield support piece -1 -.
1. 1.1 Unscrew and remove screws -2 -.
2. 1.2 Unscrew nuts -3 - and remove center heat shield support piece -1 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

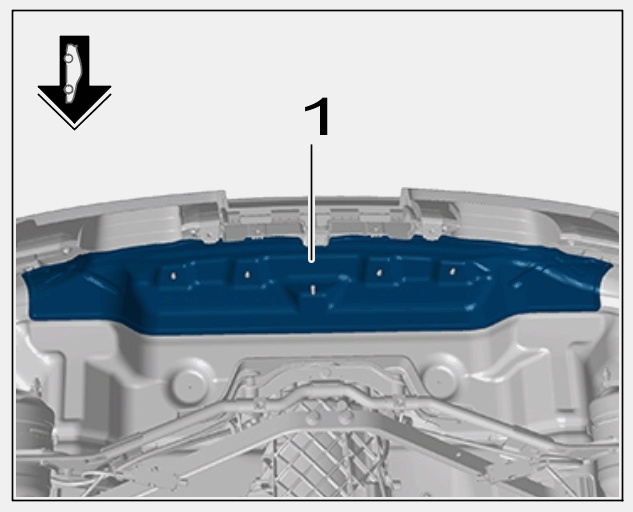

Basic/S: Remove center heat shield -1 -.
1. 2.1 Unscrew nuts -2 - and remove center heat shield -1 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

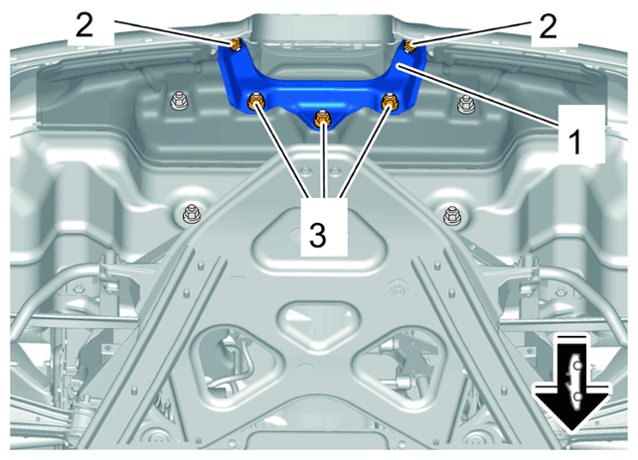

GT4/Spyder: Remove center heat shield support piece -1 -.
1. 3.1 Unscrew and remove screws -2 -.
2. 3.2 Unscrew nuts -3 - and remove center heat shield support piece -1 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

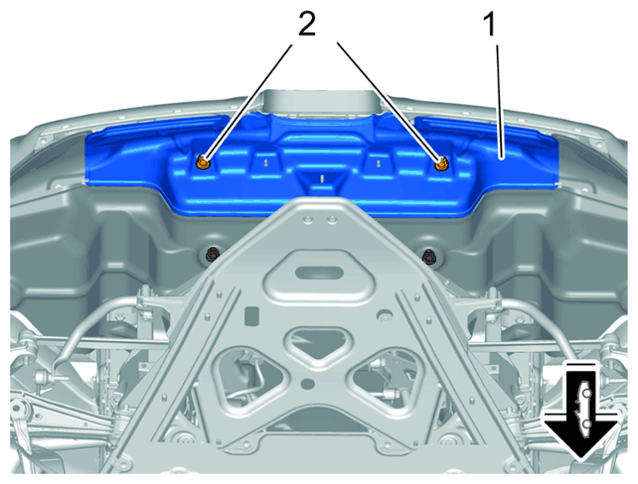

GT4/Spyder: Remove center heat shield -1 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

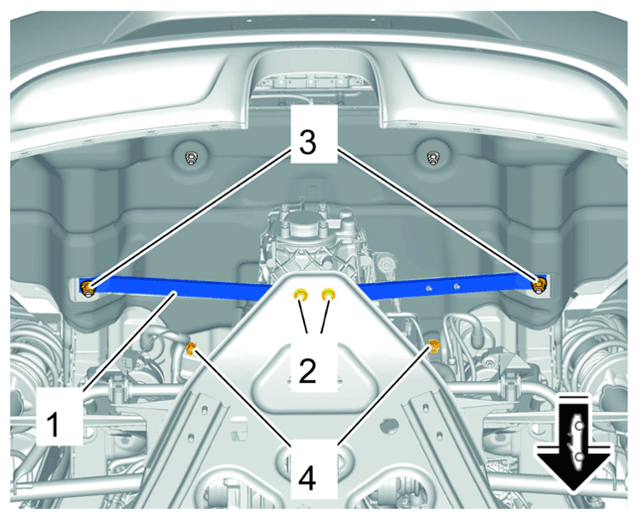

Remove V-strut -1 - and holder -4 -.
1. 5.1 Unscrew nuts -2 -.
2. 5.2 Unscrew screws -3 - and guide out V-strut -1 -.
3. 5.3 Remove holder -4 - from welded pins.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

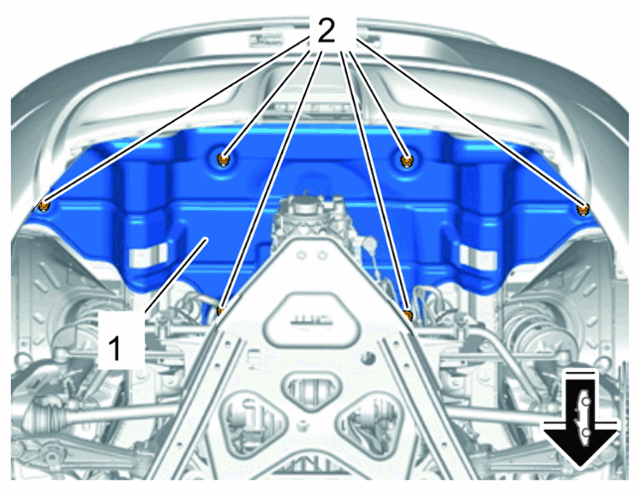

Remove heat shield on luggage compartment floor -1 -.
1. 6.1 Unscrew nuts -2 - and guide out heat shield on luggage compartment floor -1 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

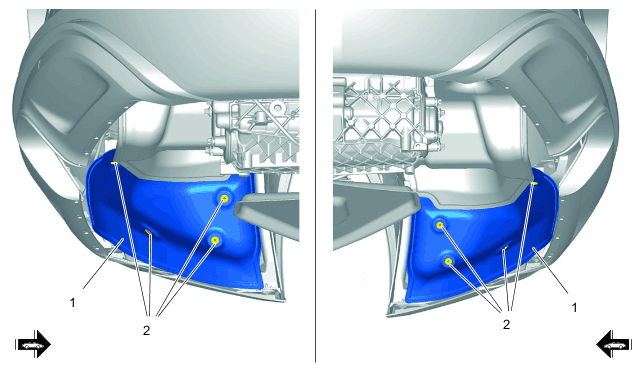

Remove heat shield cover at the side -1 -.
1. 7.1 Drill out blind rivets -2 - and remove side heat shield cover -1 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
