Removing Exhaust System

Information

• Pre-treat corroded components with anti-rust agent or heat.

Component overview:

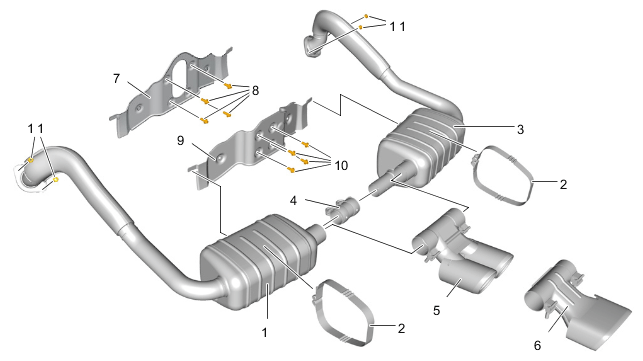

Fig 1: Exhaust System Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Rear silencer, bank 4-6
2. Clamp
3. Rear silencer, bank 1-3
4. Clamp
5. Tailpipe cover, 2.5 litre
6. Tailpipe cover, 2.0 litre
7. Holder for rear silencer on Porsche Doppelkupplung (PDK)
8. Screws, M10 x 25
9. Holder for rear silencer on manual transmission
10. Screw, M8 x 20
11. M8 collar nut - replace

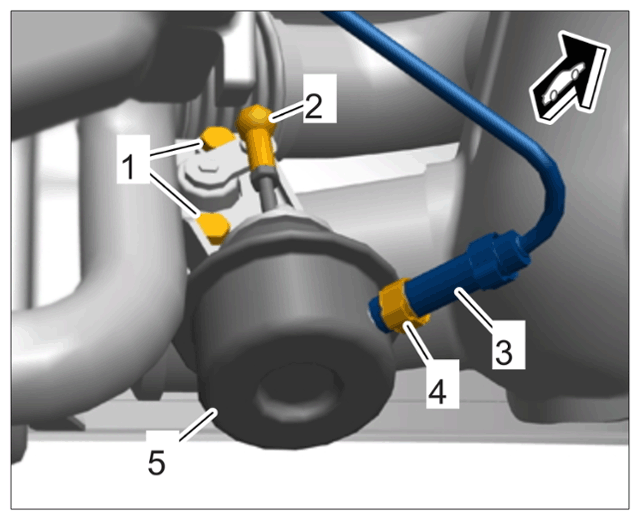

1. Vehicles with sports exhaust system:  Disconnect vacuum line -3  - at the control box.
   1. 1.1 Replace hose clamp -4  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

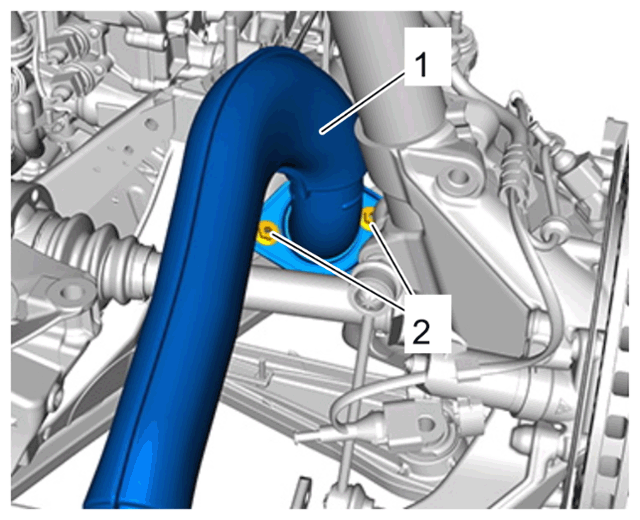

2. Loosen flange screws for rear silencer pipe -1  - going to the catalytic converter and cross tube.
   1. 2.1 Screw off M8 collar nuts -2  -.
   2. 2.2 Replace collar nuts!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Loosen restraining straps on the rear silencers.
   1. 3.1 Unscrew screws on restraining straps and remove restraining straps.
   2. 3.2 Replace restraining strap!

   Information

   • The help of another person is required when removing and installing the exhaust system.
4. Remove the exhaust system with the help of another person.
   1. 4.1 Replace flange gaskets!
