Removing Guide Sleeve

WARNING: This page is about a different variant/trim than selected.

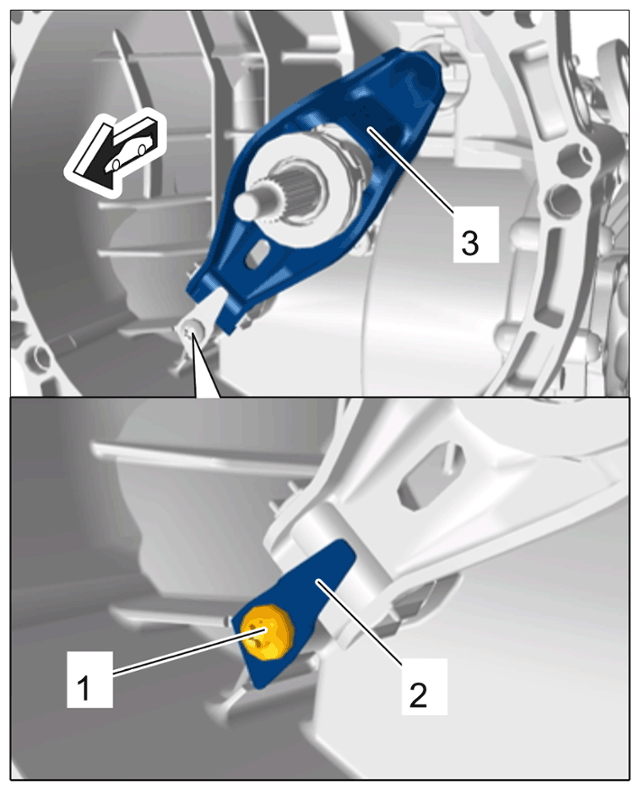

  1. Remove release lever -3-  with release bearing.
    1. 1.1 Unscrew fastening screw -1-  on the retaining bracket -2-  .
    2. 1.2 Remove retaining bracket -2-  .
    3. 1.3 Remove release lever -3-  with release bearing.
    G14946133Courtesy of PORSCHE CARS NORTH AMERICA, INC.

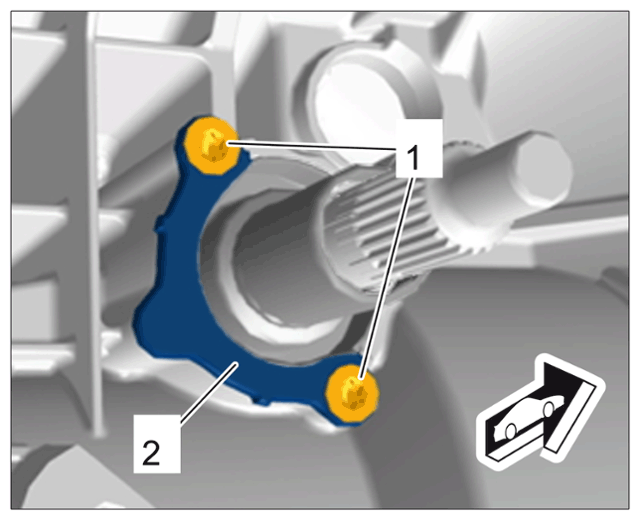

  2. Unscrew fastening screws -1-  for the holder -2-  on the guide sleeve.
  3. Remove holder -2-  .
    G14946134Courtesy of PORSCHE CARS NORTH AMERICA, INC.

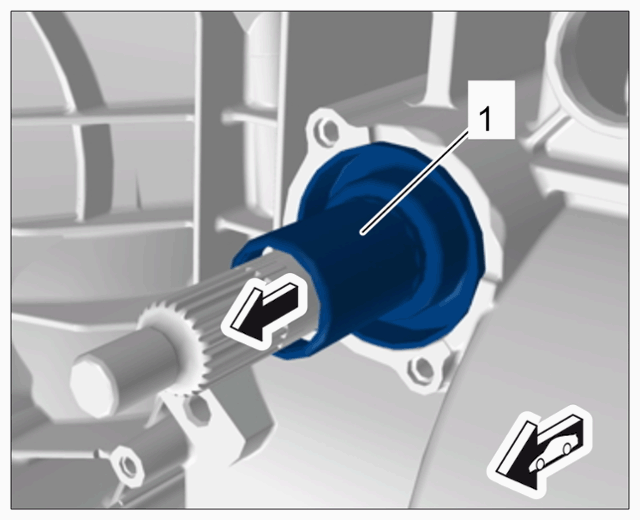

  4. Remove guide sleeve -1-  over the transmission input shaft -arrow-  .
G14946135Courtesy of PORSCHE CARS NORTH AMERICA, INC.
