Removing Release Bearing
WARNING: This page is about a different variant/trim than selected.

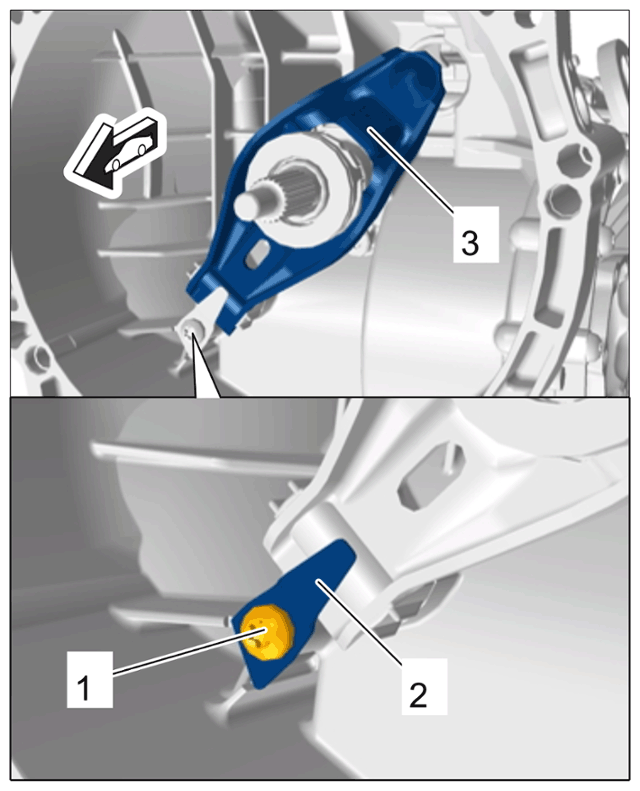

- Remove release lever -3-
with release bearing.
- 1.1 Unscrew fastening screw -1-
on the retaining bracket -2-
.
- 1.2 Remove retaining bracket -2-
.
- 1.3 Remove release lever -3-
with release bearing.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

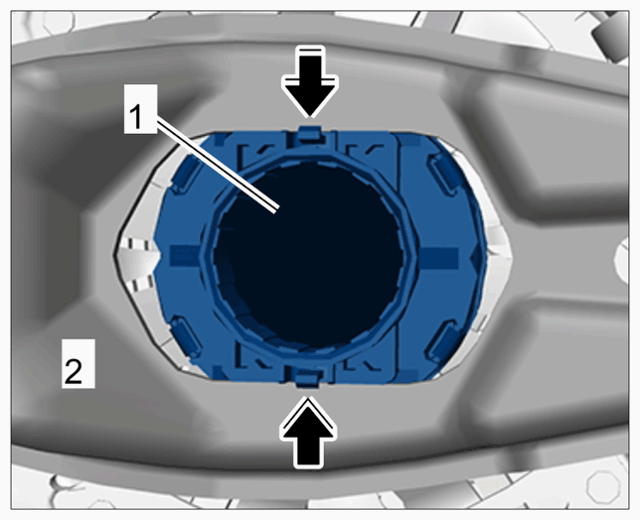

- Unclip release bearing -1-
on the release lever -2-
(-arrows-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
