Installing Release Bearing
WARNING: This page is about a different variant/trim than selected.
- Clean components.

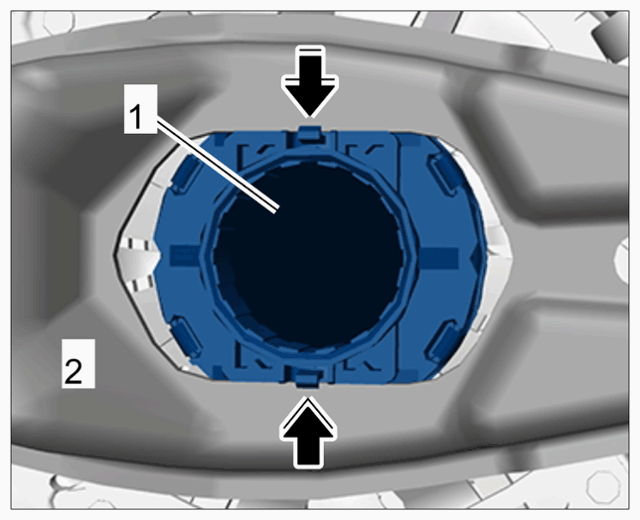

- Clip in release bearing -1-
on the release lever -2-
(-arrows-
).
- Grease splines of the transmission shaft with Longtime 3EP.

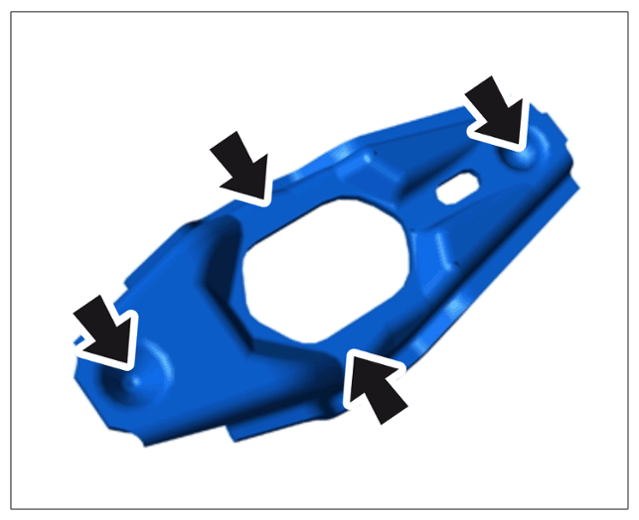

- Lubricate the contact points -arrows-
on the release lever with a light coating of Kluberalfa HM83-801.
- Further installation is performed in reverse order to removal.
Fastening screw for release lever retaining bracket > Tightening torque 25 Nm (19 ftlb.) .
